Motor Limit Tool

Simple Programming of all Motors and Controls Within a Network

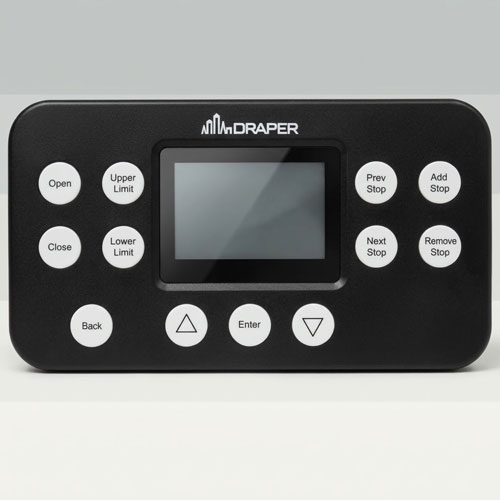

A parameter adjustment tool, the Motor Limit Tool provides programming of operational direction, upper and lower travel limits, and preset stops for individual or groups of Draper intelligent motors within a network. Once motor limits and preset stops are completed for one motor, the configurations can then be copied and pasted allowing for easy, simple programming of all the motors in the network at one time. The LCD display features an easy user process experience and allows the end user the ability to reset factory default settings.


Product Specs

  • Dimensions: 5-1/8” x 2-7/8” x 1-1/8” (131 mm x 73 mm x 28 mm).
  • Network Device Connector included.
  • Constructed of ABS plastic.
  • Indoor use only.

ANSI/WCMA A100.1-2022 Child Safety Standard

Effective June 1, 2024, in compliance with the updated ANSI/WCMA A100.1-2022 child safety standard, all Draper window shades operated by a bead chain will be furnished with a tensioned hold-down device that is permanently attached and partially disables the product if not installed correctly. This hold-down should be installed with tension on the chain.

All bead chain operated window shades will include:

  • Permanently installed spring-loaded tensioned hold-down device
  • Approved permanent warning label attached
  • Approved mechanical fasteners for the tension device included. Screws provided are not suitable for all mounting surfaces. The installer is responsible for secure mounting using appropriate hardware for the site conditions. Consult with contractors and builders as needed.

If the tension device is not installed with appropriate tension on the bead chain, the shade will be rendered partially inoperable. If installed properly, the tension device will prevent the creation of a hazardous loop and will maintain tension on the bead chain.

Approved permanent warning label

Learn more about the new child safety standard

At the link below, you can see more information about the new child safety standard, mounting methods for the tensioned hold-down device, alternatives to bead chain products, and more.

Click here for more information
Tensioned hold-down device
