Projection Screens

Draper Projection Screens

Manufacturing premium projector screens takes deep knowledge. We’ve been doing it since 1957, and have continually upped our game: we’ve invested millions of dollars on specialized production and testing equipment and in-depth employee training to produce high quality, high performing solutions.

We provide a wide range of motorized, manual, fixed, and portable screens for front and rear projection. Small spaces, huge venues, brightly-lit conference centers, residential home theatres, mission-critical control centers, and medical imaging—whatever installation or ambient environment challenges you face, we have a solution.

Choose Your Mounting Method:

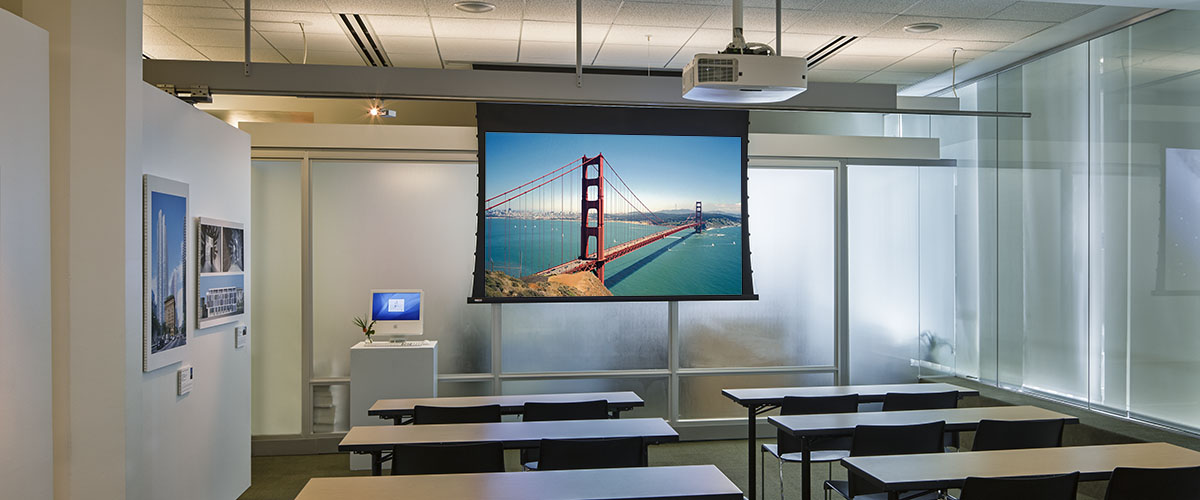

Ceiling-Recessed Projection Screens

These screens are installed into a pocket or recess in the ceiling and include a trim flange for a finished appearance. Ceiling recessed screens can be either motorized or manually operated.

Card image cap

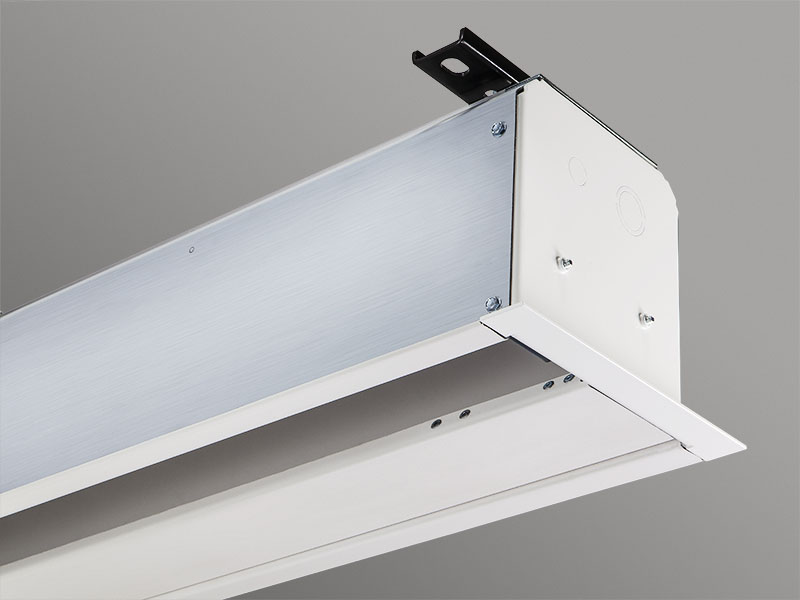

Access

  • Installation of the case during the initial phase of construction eliminates job site damage, allowing for installation or replacement of the screen at a later time.
  • Case dimensions: 7-3/8" h x 8-1/16" d (19 x 20 cm), includes trim flange.
  • Motorized or manual operation.
  • Tab-tensioned and self-supporting surfaces.
  • Sizes up to 16' (488 cm) wide depending on model.

The original "Case Now, Screen Later" family of projection screens. Installation of the case during the initial phase of construction eliminates job site damage, allowing for installation or replacement of the screen at a later time. A removable bottom closure panel provides access to all components for easier service and maintenance.

View Models:

Card image cap

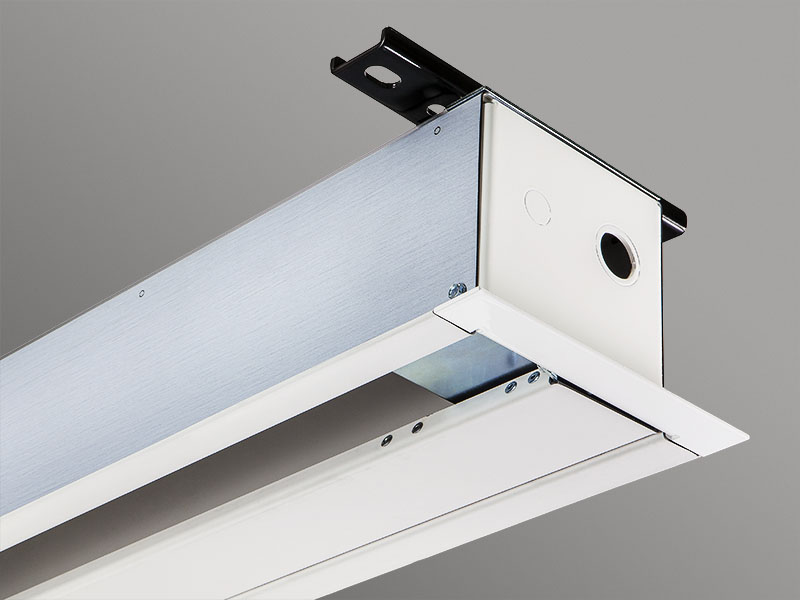

Access Fit

  • Smaller case dimensions allow for installation in tight spaces: 5-11/16” h x 6-7/16” d (14 cm x 16 cm), includes trim flange.
  • Installation of the case during the initial phase of construction eliminates job site damage, allowing for installation or replacement of the screen at a later time.
  • Motorized or manual operation.
  • Tab-tensioned and self-supporting surfaces.
  • Sizes up to 120" (305 cm) wide depending on model.

View Models:

Card image cap

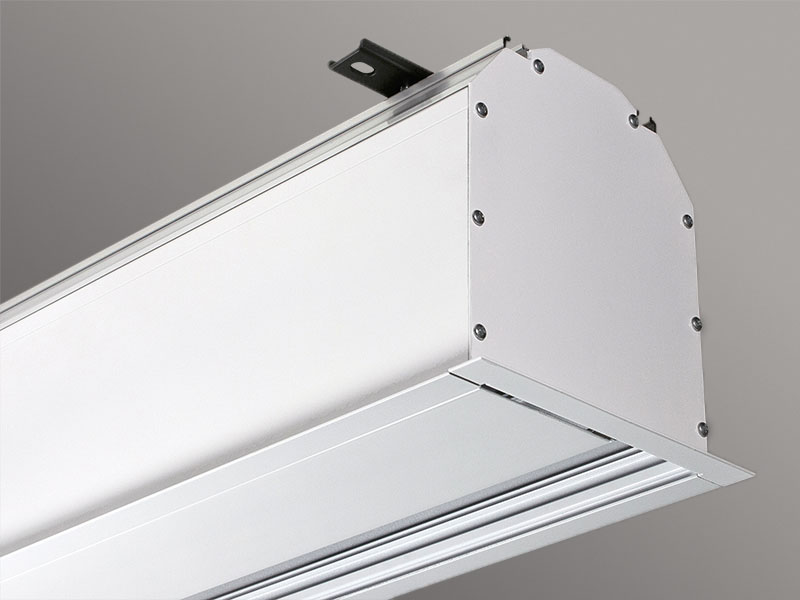

Access XL

  • Designed for large venues.
  • Installation of the case during the initial phase of construction eliminates job site damage, allowing for installation or replacement of the screen at a later time.
  • Case dimensions: 10-1/8" h x 9-7/16" d (26 cm x 24 cm), includes trim flange.
  • Motorized operation.
  • Tab-tensioned and self-supporting surfaces.
  • Sizes up to 20' (610 cm) wide depending on model.

View Models:

Card image cap

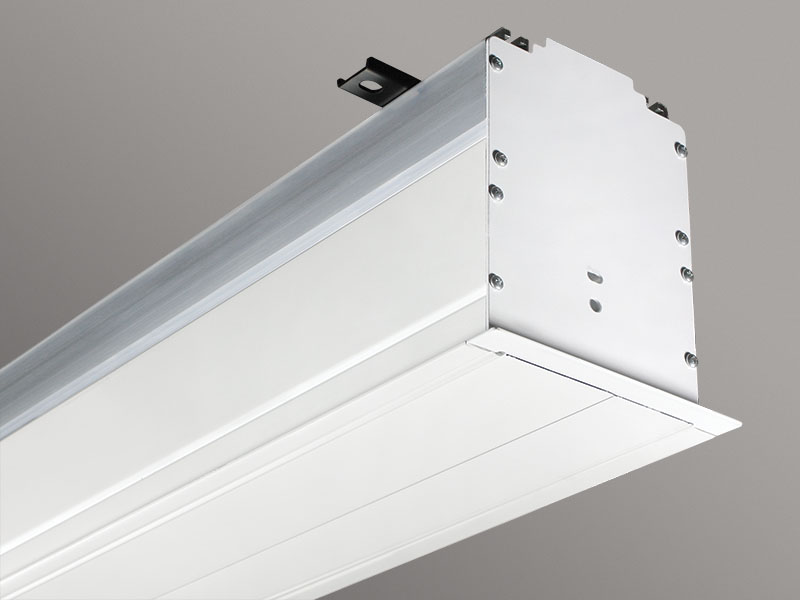

Ultimate Access

  • Offers ultimate concealment: a closure panel is opened by a second motor when the screen descends.
  • Installation of the case during the initial phase of construction eliminates job site damage, allowing for installation or replacement of the screen at a later time.
  • Case dimensions: 9-7/8" h x 8" d (25 cm x 20 cm), includes trim flange.
  • Motorized operation.
  • Tab-tensioned and self-supporting surfaces.
  • Sizes up to 12' (366 cm) wide.

View Models:

Card image cap

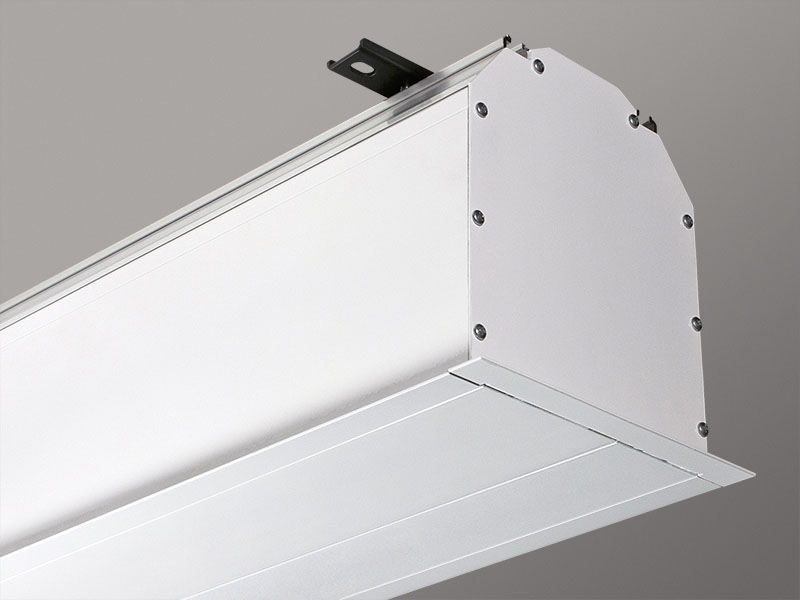

Ultimate Access XL

  • Designed for large venues.
  • Offers ultimate concealment: a closure panel is opened by a second motor when the screen descends.
  • Installation of the case during the initial phase of construction eliminates job site damage, allowing for installation or replacement of the screen at a later time.
  • Case dimensions: 14-1/16" h x 10-3/8" d (36 cm x 26 cm), includes trim flange.
  • Motorized operation.
  • Tab-tensioned and self-supporting surfaces.
  • Sizes up to 22' (671 cm) wide.

View Models:

Card image cap

Envoy

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nulla malesuada libero vitae dictum tempor. Nulla facilisi. In hac habitasse platea dictumst. Vestibulum at quam et turpis placerat viverra. Suspendisse gravida vulputate faucibus. Suspendisse viverra facilisis sapien sagittis aliquet. Curabitur urna neque, suscipit eget tellus in, pellentesque dignissim arcu. Sed quis sollicitudin lorem.

View Models:

Surface Mounted on Wall or Ceiling

These screens are installed onto the surface of a wall or ceiling. Surface mounted screens can be either motorized or manually operated.

Card image cap

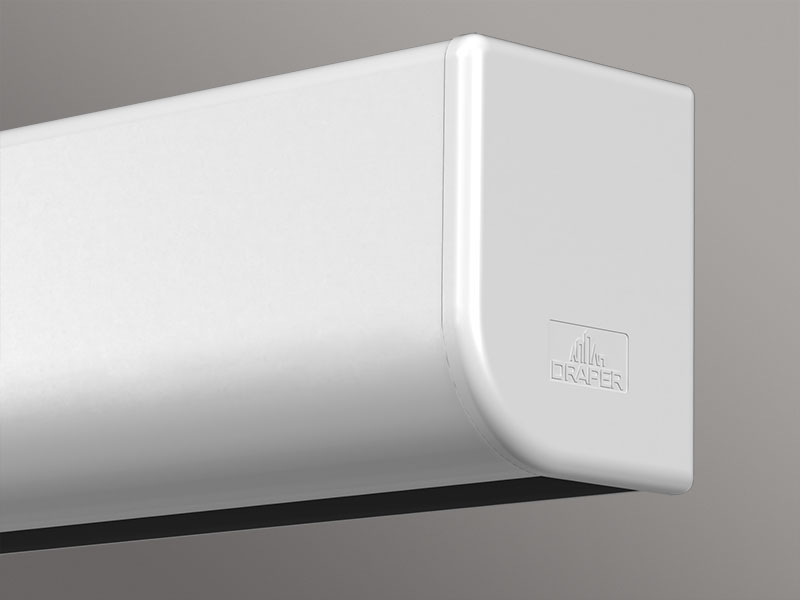

Acumen

  • Maximum versatility. Acumen addresses virtually any projection environment or room design.
  • Floating mounting brackets and removable fascia offer easy installation.
  • Case dimensions: 7-1/8” h x 5-78” d (181 x 149 mm).
  • Motorized or manual operation.
  • Rechargeable battery operation available.
  • Tab-tensioned and self-supporting surfaces.
  • Sizes up to 144" (366 cm) wide depending on model.

View Models:

Card image cap

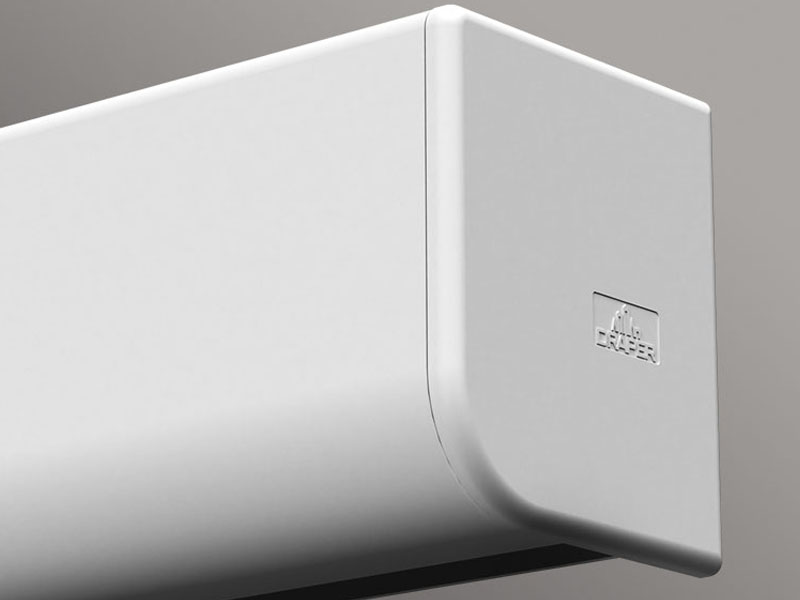

Acumen XL

  • Designed for large venues.
  • Floating mounting brackets and removable fascia offer easy installation.
  • Case dimensions: 9-1/4” h x 8-1/8” d (235 x 206 mm).
  • Motorized operation.
  • Tab-tensioned and self-supporting surfaces.
  • Sizes up to 18' (549 cm) wide.

View Models:

Card image cap

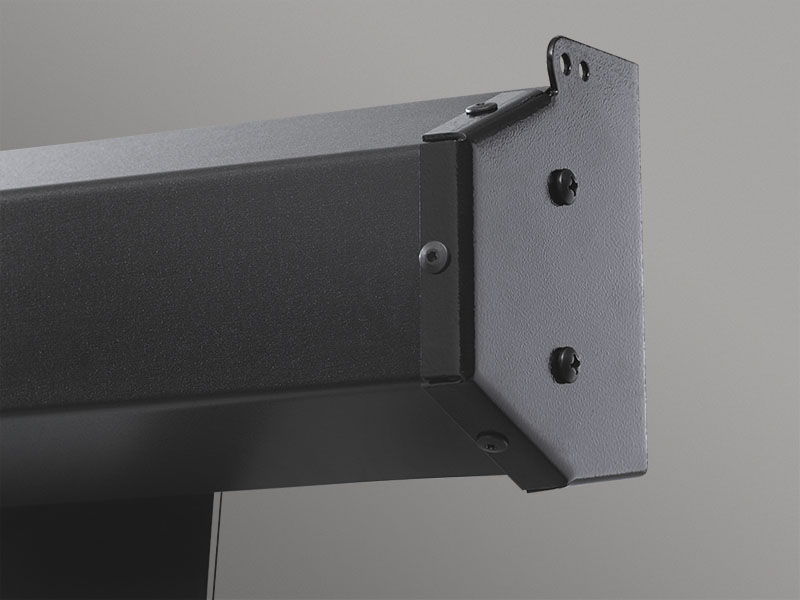

Premier

  • Economical and attractive.
  • Case dimensions: 5-7/8" h x 5-1/4" d (15 cm x 13 cm).
  • Motorized and crank operation.
  • Tab-tensioned surfaces.
  • Sizes up to 12' (366 cm) wide.

View Models:

Card image cap

Premier XL

  • Designed for large venues.
  • Economical and attractive.
  • Case dimensions: 6-3/4" h x 6-3/4" d (17 x 17 cm).
  • Motorized operation.
  • Tab-tensioned surfaces.
  • Sizes up to 16' (488 cm) wide.

View Models:

Card image cap

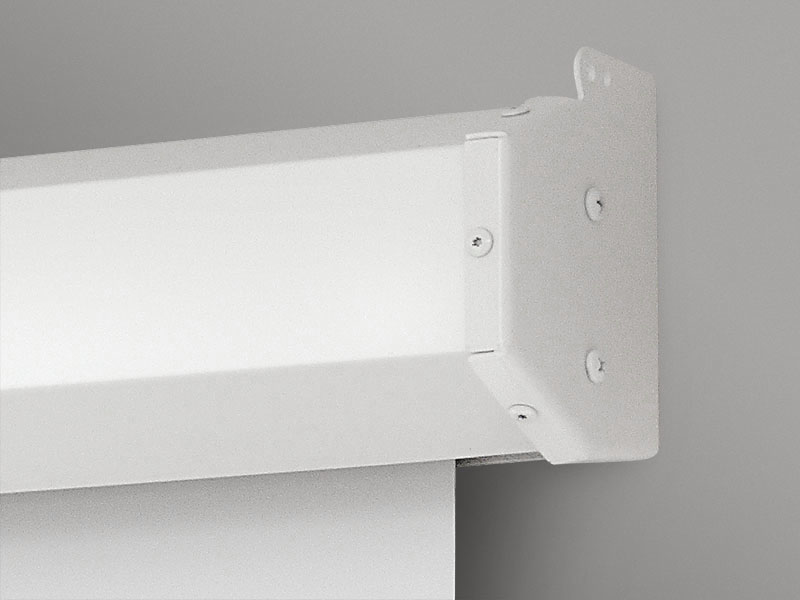

Targa

  • Economical and attractive.
  • Case dimensions: 5-7/8" h x 5-1/4" d (15 x 13 cm).
  • Motorized operation.
  • Free-hanging surfaces.
  • Sizes up to 12' (366 cm) wide.

View Models:

Card image cap

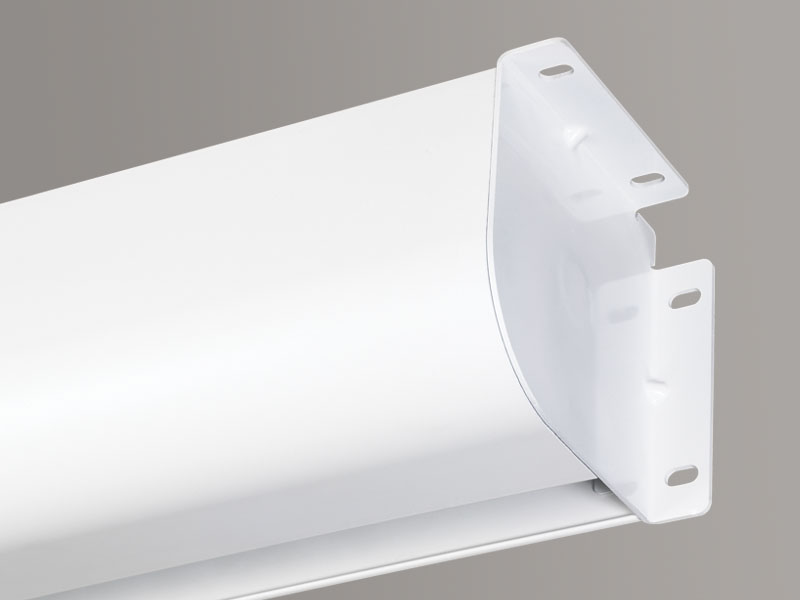

Targa XL

  • Popular, designed for large venues.
  • Case dimensions: 6-3/4" h x 6-3/4" d (17 x 17 cm).
  • Motorized operation.
  • Free-hanging surfaces.
  • Sizes up to 16' (488 cm) wide.

View Models:

Card image cap

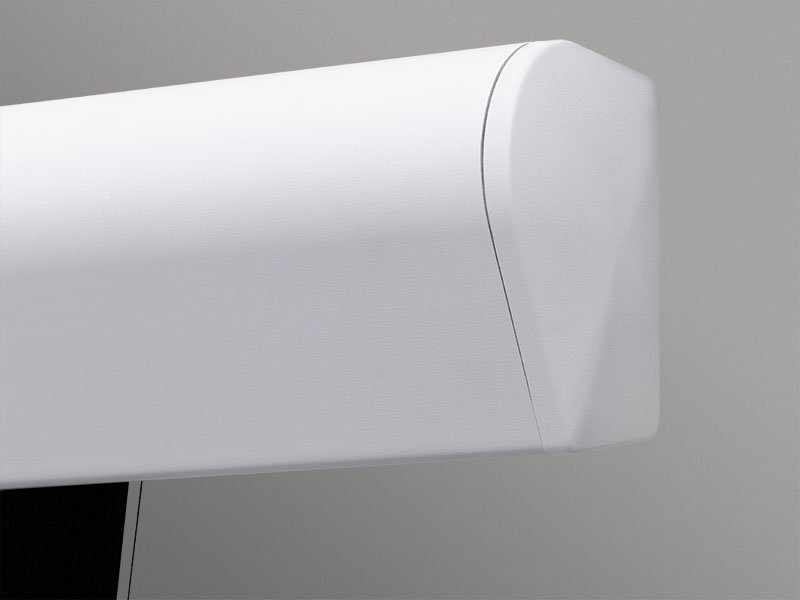

Silhouette

  • Slender dimensions and a contemporary design.
  • Case dimensions: 6" h x 4-3/4" d (15 x 12 cm).
  • Motorized and manual operation.
  • Tab-tensioned and free-hanging surfaces.
  • Sizes up to 96" (244 cm) wide.

View Models:

Card image cap

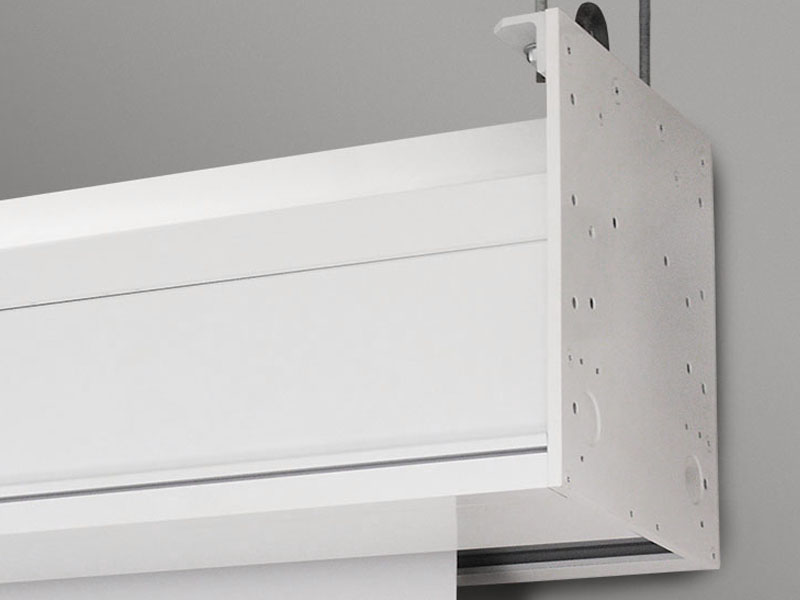

Paragon

  • Our largest operable projection screen, ideal for auditoriums and lecture halls
  • Case dimensions: 13-1/4" h x 12" d (34 x 30 cm)
  • Motorized operation.
  • Tab-Tensioned and Free-hanging surfaces.
  • Sizes up to 24' (732 cm) wide.

View Models:

Card image cap

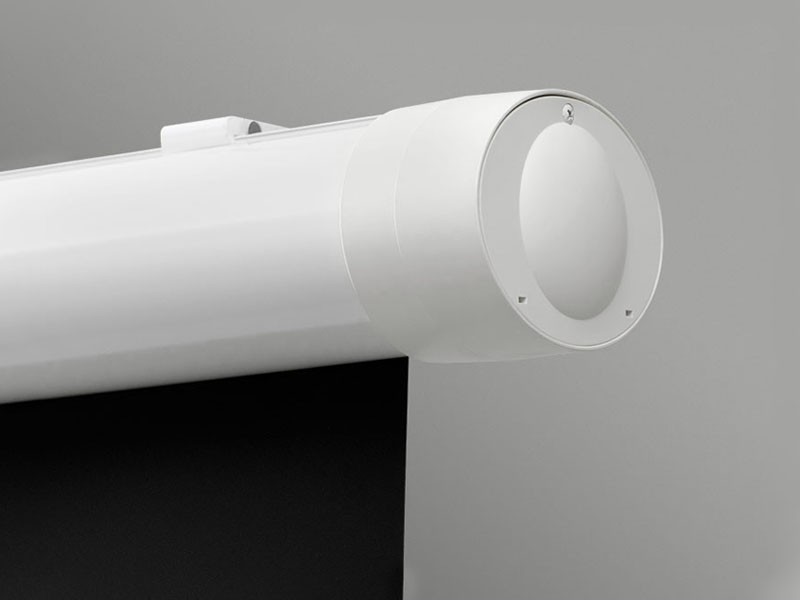

Salara

  • Stylish elliptical case.
  • Case dimensions: 3-13/16" h x 5-1/16" d (9.7 x 12.9 cm).
  • Motorized and manual operation.
  • Hardwired and Plug and Play motorized options.
  • Free-hanging surfaces.
  • Sizes up to 96" (244 cm) wide.

View Models:

Card image cap

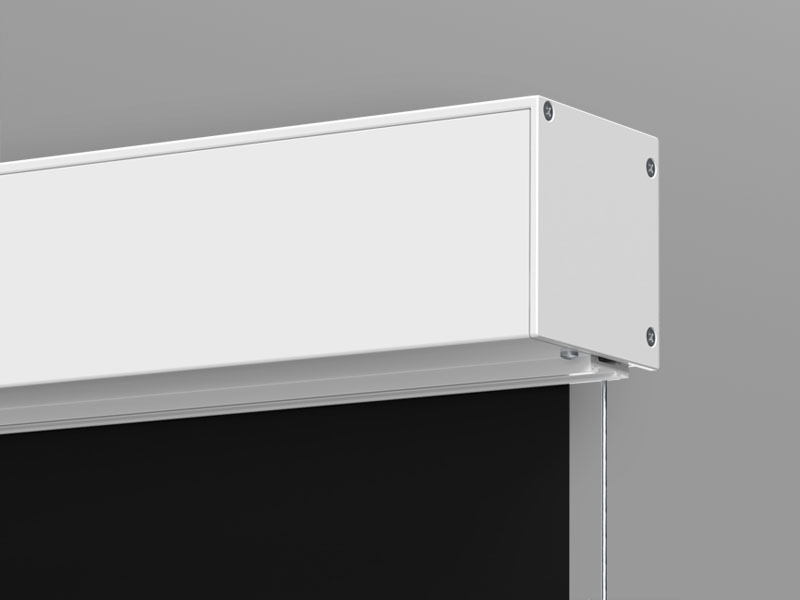

Nocturne+

  • Designed for outdoor use.
  • Square and curved headboxes available.
  • Case dimensions: 3-5/8” d x 3-5/8” h (9.21 x 9.21 cm).
  • Motorized and manual operation.
  • Free-hanging surfaces with cable guides.
  • Sizes up to 132" (325 cm) wide depending on model.

View Models:

Card image cap

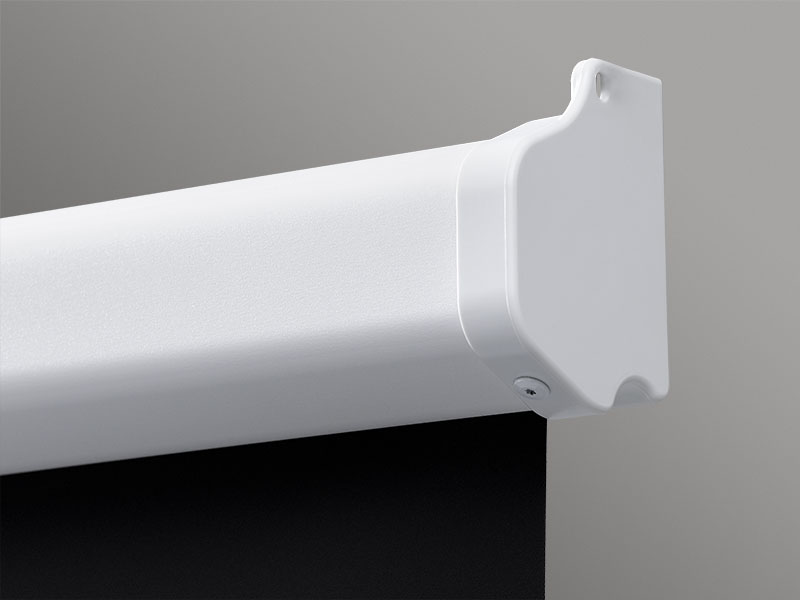

Luma

  • The classic choice for classrooms or conference rooms.
  • Case dimensions: 3-3/4” h x 3-1/4” d (10 x 8 cm).
  • Manual operation.
  • Free-hanging surfaces.
  • Sizes up to 96" (244 cm).

View Models:

Card image cap

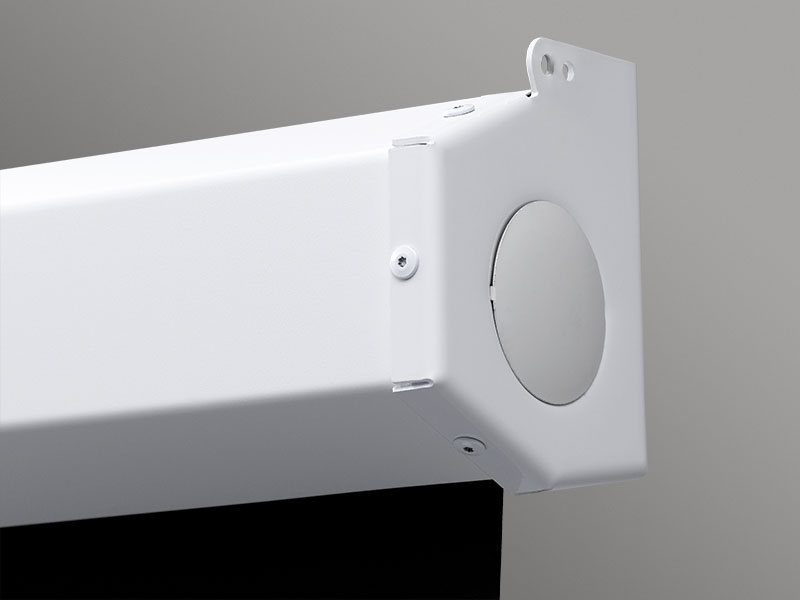

Luma 2

  • Heavy-duty spring-roller operated screen.
  • Case dimensions: 5-7/8” h x 5-1/4” d (15 x 13 cm).
  • Manual operation.
  • Free-hanging surfaces.
  • Sizes up to 12' (366 cm).

View Models:

Card image cap

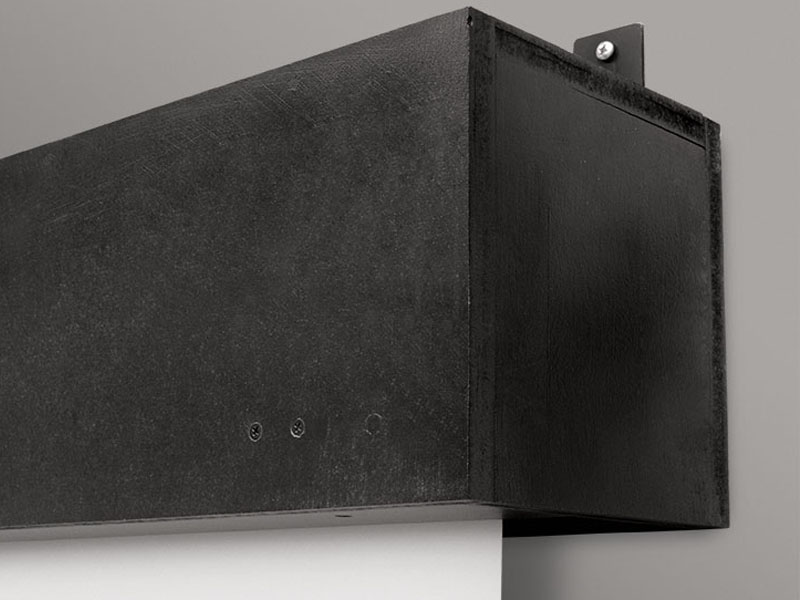

Rolleramic

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nulla malesuada libero vitae dictum tempor. Nulla facilisi. In hac habitasse platea dictumst. Vestibulum at quam et turpis placerat viverra. Suspendisse gravida vulputate faucibus. Suspendisse viverra facilisis sapien sagittis aliquet. Curabitur urna neque, suscipit eget tellus in, pellentesque dignissim arcu. Sed quis sollicitudin lorem.

View Models:

Fixed Projection Screens

These screens are mounted to a wall or vertical structure.

Card image cap

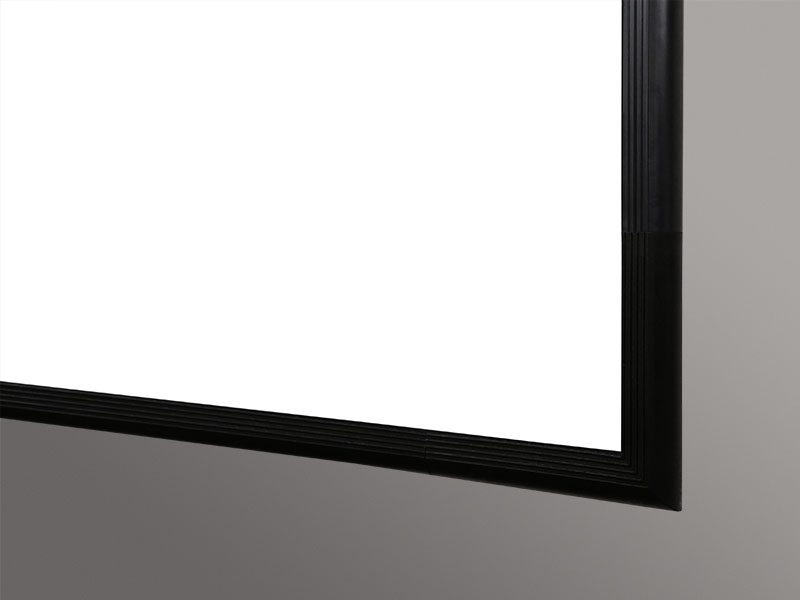

Profile+

  • Bezel is only 5/8" (16 mm) wide, mimicing the look of a flat panel display.
  • Installed screen is less than 2" (51 mm) in depth.
  • Available in a zero edge/borderless option.
  • Adjacent screens can come together with virually zero separation.
  • Sizes up to 80' (24.4 m) wide for wall mounted applications.
  • Sizes up to 30' (914 cm) wide for flown applications.

View Models:

Card image cap

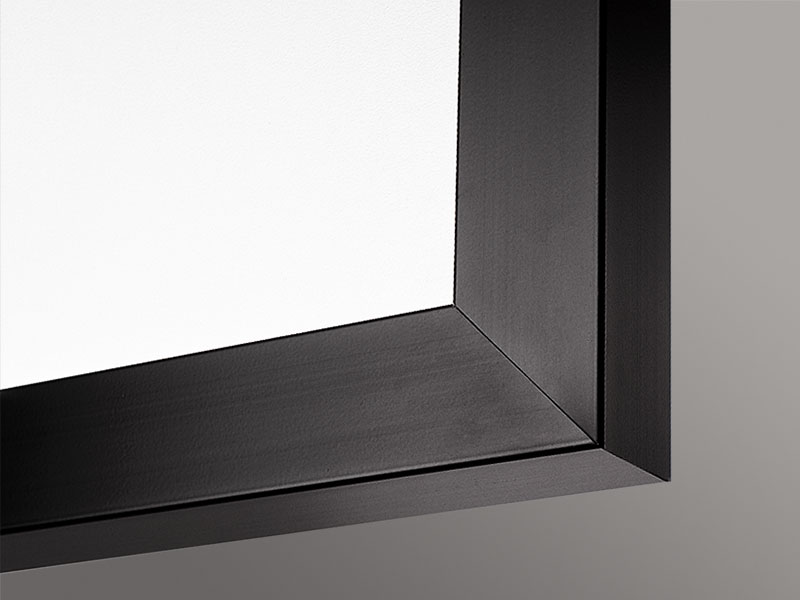

Clarion

  • Surface is tensioned behind a beveled 2" frame creating a taut, flat viewing surface.
  • Available in anodized aluminum or Vel-Tex finish.
  • Edgeless Clarion is available for an unobtrusive, borderless installation.

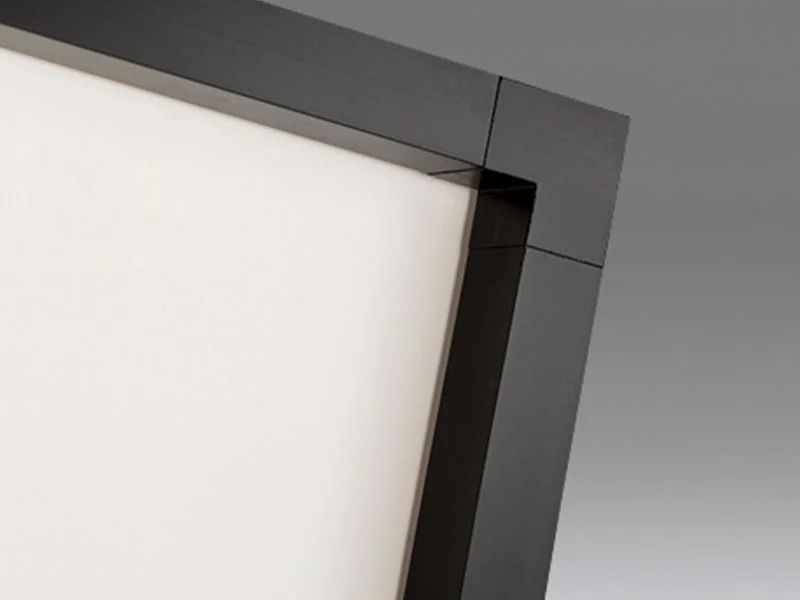

  • Shadowbox Clarion is available with a tubular 1-1/2" black frame.
  • Curved applications are available. Please contact your sales representative.

View Models:

Card image cap

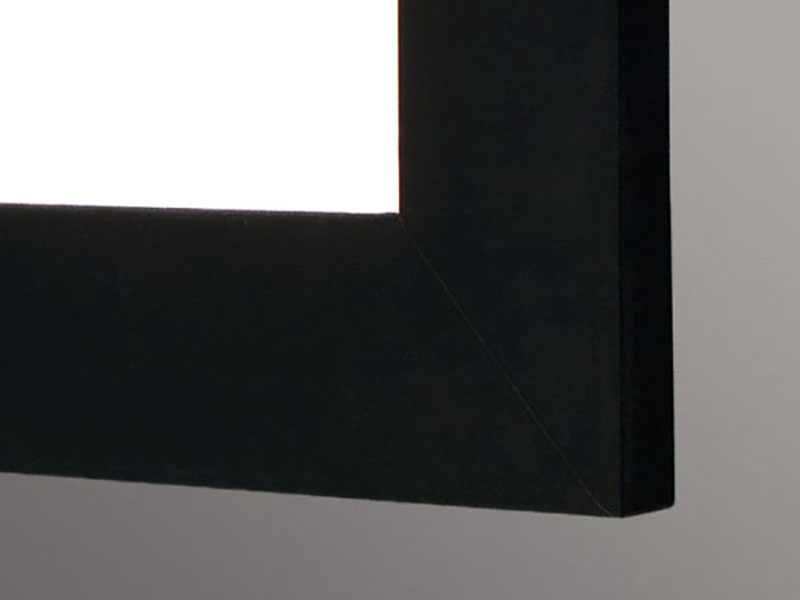

Onyx

  • 4" (10 cm) anodized aluminum or Vel-Tex finished black frame.
  • No snaps! Unique fabric retention system enables uniform tension adjustment to the entire surface area, without tools.
  • Sizes up to 20' (610 cm) wide.
  • Curved applications are available. Please contact your sales representative.

View Models:

Card image cap

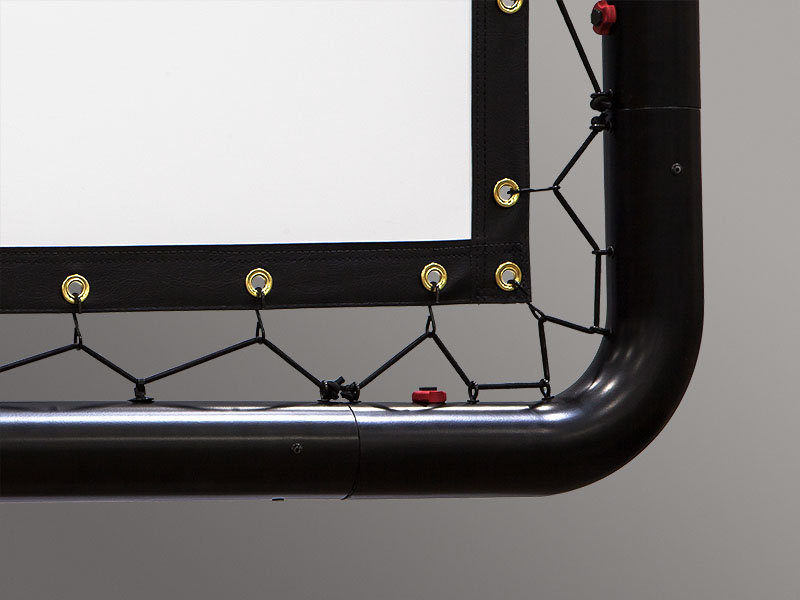

Lace & Grommet

  • Ideal for blending, multi-format, or curved applications.
  • Frame ships with the bungees securely attached and no lace threading required for trouble-free installation.
  • Frame provides constant surface tension for excellent image quality.
  • Sizes up to 100' (30 m) wide.

View Models:

Free-Standing and Portable Projection Screens

These screens stand on their own legs, and are portable by design.

Card image cap

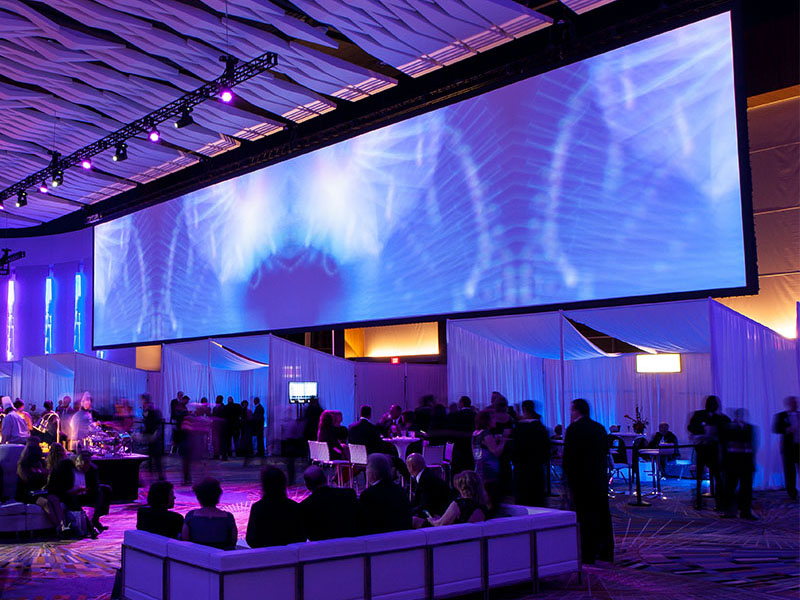

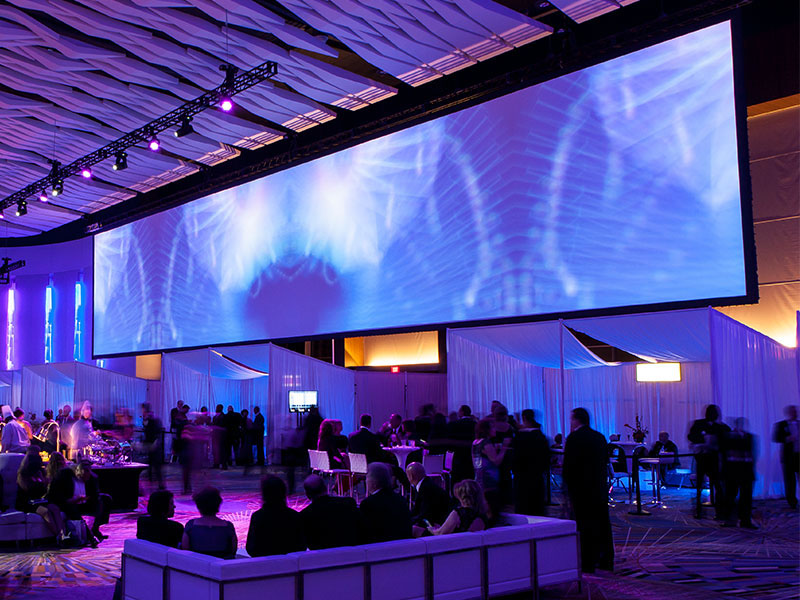

StageScreen

  • Modular frame construction: all available sizes of StageScreen utilize a combination of six interchangeable color-coded frame section lengths.
  • 8” (20 cm) truss design makes it significantly stronger than traditional truss folding screens.
  • DuraLoop bungee system allows quick, easy attachment of the viewing surface.
  • Can be flown, or stands on its own with legs. Dress it up using Inherently Flame Retardant dress kits.
  • Sizes up to 120' wide (37 m).

View Models:

Card image cap

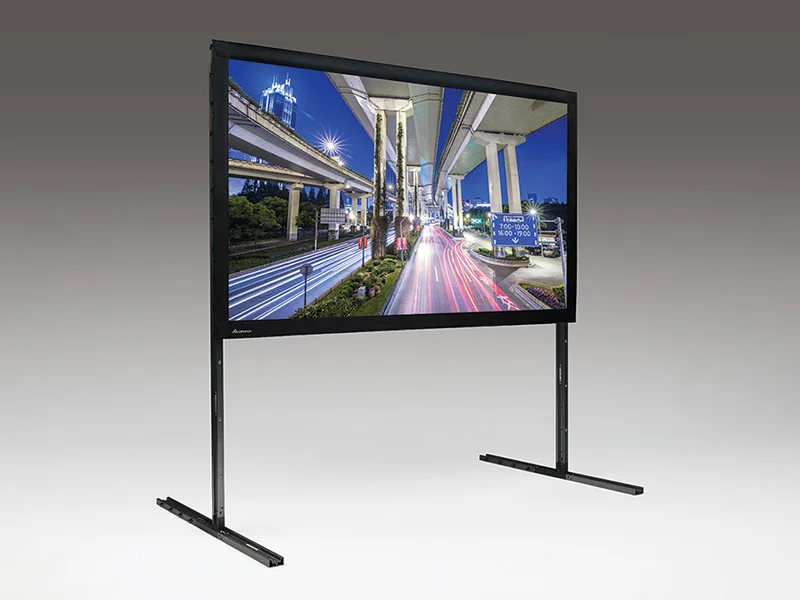

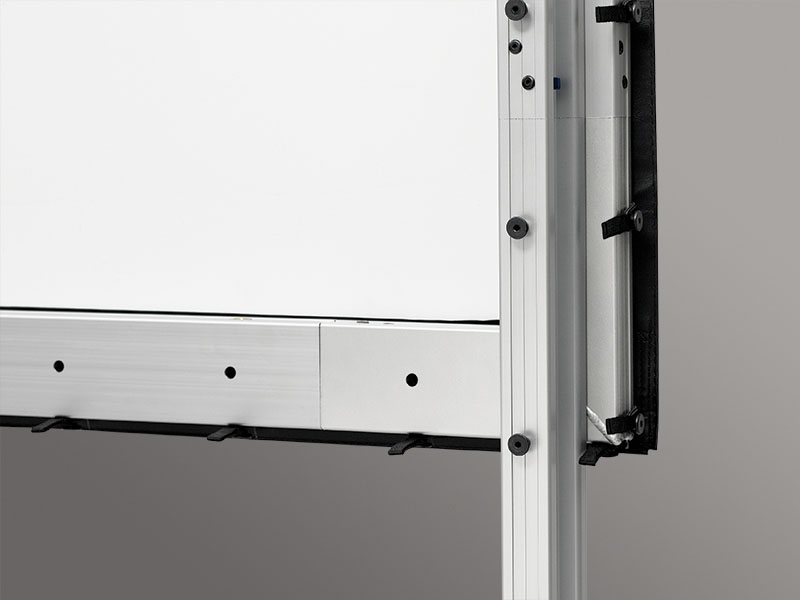

FocalPoint

  • Utilizes interchangeable frame pieces to create different viewing sizes and formats.
  • Sizing flexibility streamlines inventory and enables a greater return on initial investment.
  • Simplicity of design and rugged components withstand the rigors of repeated set ups and tear downs.
  • DuraLoop bungee system provides easy, quick attachment of the perfectly flat viewing surface.
  • Sizes up to 20' (61 m) wide.

View Models:

Card image cap

Ultimate Folding Screen

  • Withstands the rigors of repeated set up and tear downs in demanding applications.
  • Features a lock-and-load latch that provides an extremely rigid frame.
  • The resilient latch retention spring is captured and constantly flexed to prevent the screen from dislodging.
  • Anodized aluminum tubing provides stability for larger projection screen sizes.
  • Sizes up to 192" (488 cm) wide.

View Models:

Card image cap

Cinefold

  • Requires no tools for set up
  • Lightweight yet rugged.
  • Color-coded frame sets up in minutes.
  • Tempered steel hinges lock positively into place.
  • The viewing surface snaps onto the perimeter frame providing a flat viewing surface.
  • Available with interchangeable front and rear projection surfaces.
  • Sizes up to 14' wide (42.7 m).

View Models:

Card image cap

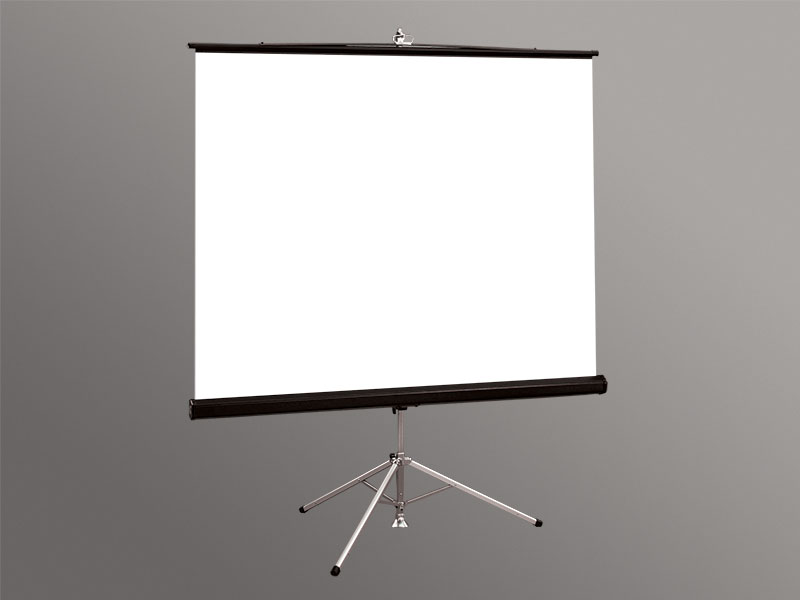

Diplomat/R

  • Heavy-duty tripod, reinforced roller, and steel endcaps.
  • Easy set-up and one-hand case adjustment.
  • Diplomat/R is also available with a black carpeted case.
  • Sizes up to 96" x 96" (244 x 244 cm).

View Models:

Card image cap

Traveller

  • Lightweight, portable projection screen offers a clean, simple design.
  • Viewing area features 42" of black rise below image area.
  • The infinitely adjustable telescoping mast locks with a twist to position the screen at the desired height.
  • The durable, self-contained, extruded aluminum case with a black powder coat finish and built-in carrying handle provides easy transport.
  • Available with optional padded carrying case.
  • Sizes up to 60" h x 80" wide (152 x 203 cm).

View Models:

Flown Projection Screens and Solutions

These screens are designed to be flown or suspended from above. In addition to screens, the agile Acrobat motorized lift is available to facilitate flying screens and more.

Additional Draper projection screens not shown on this page can be used in flown applications. Please contact your sales representative to discuss your specific needs.

Card image cap

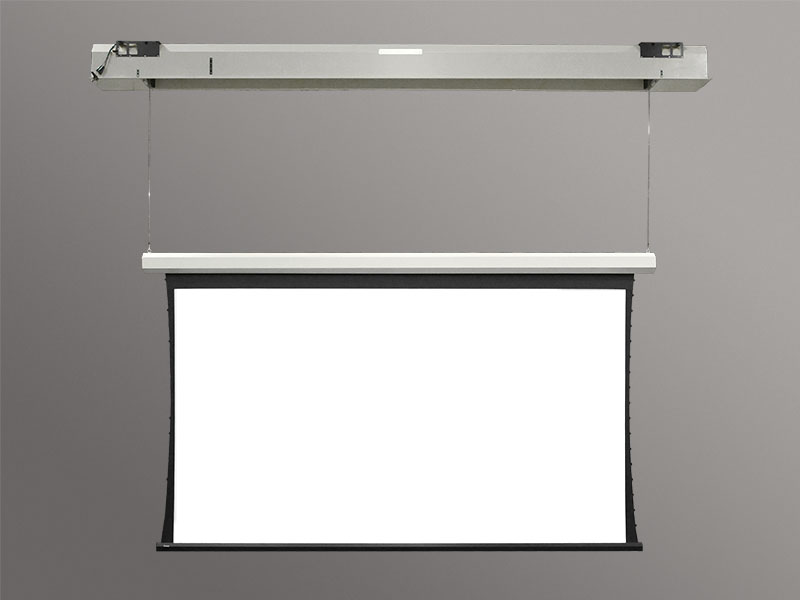

Ropewalker

  • Ropewalker conceals a projection screen and lift mechanism in one ceiling-recessed box.
  • Eliminates the need for excessive black drop between the screen and tall ceilings.
  • Ropewalker lowers the inner case and viewing surface on stainless steel aircraft cables.
  • Ideal for ballrooms, gymnasiums, houses of worship, and other large venues.
  • The viewing surface is available in both tab-tensioned and free-hanging.
  • Safety cables with cable arresters are included that connect the inner and outer cases.
  • Image sizes up to 18' x 18' (548 x 548 cm), and travel range up to 34'(10 m).

View Models:

Card image cap

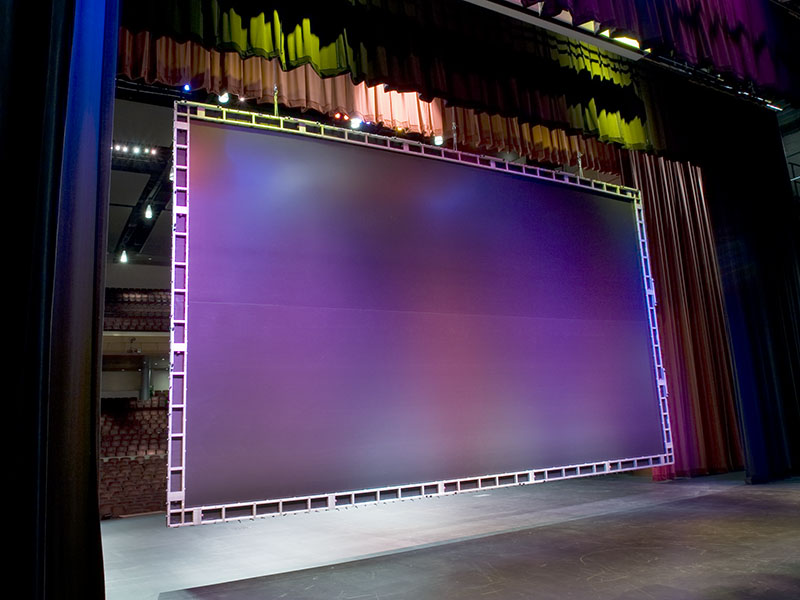

StageScreen

  • Modular frame construction: all available sizes of StageScreen utilize a combination of six interchangeable color-coded frame section lengths.
  • 8” (20 cm) truss design makes it significantly stronger than traditional truss folding screens.
  • DuraLoop bungee system allows quick, easy attachment of the viewing surface.
  • Ideal for flying above stages, in theaters, or in large venues.
  • Sizes up to 120' wide (37 m).

View Models:

Card image cap

Lace & Grommet

  • Ideal for blending, multi-format, or curved applications.
  • Frame ships with the bungees securely attached and no lace threading required for trouble-free installation.
  • Frame provides constant surface tension for excellent image quality.
  • Ideal for flying in theaters, auditoriums, and stage events
  • Sizes up to 100' (30 m) wide.

View Models:

Card image cap

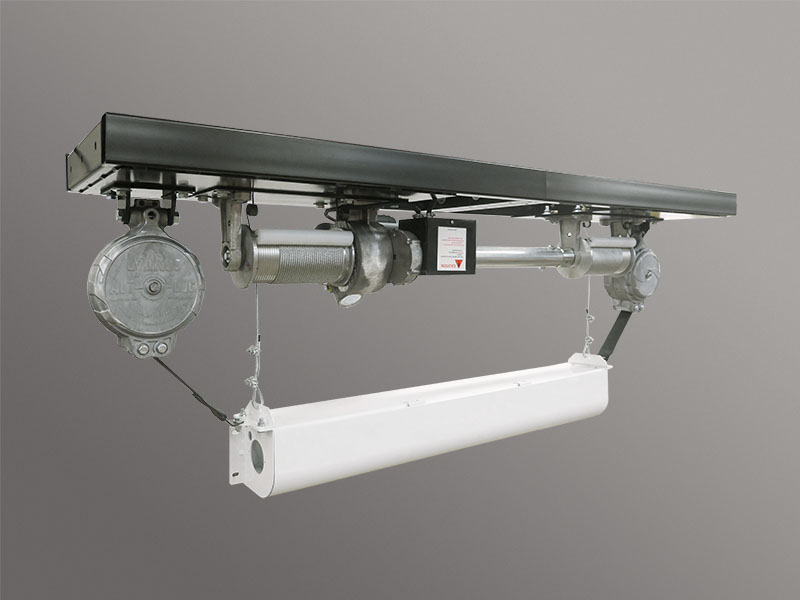

Fly Your Screens with an Acrobat

To facilitate raising and lowering Draper screens and other eqiupment, we offer the powerful and versatile Acrobat lift. Acrobat’s lifting mechanism improves function and serviceability in areas with tall ceilings. Acrobat was specifically designed to lift our Paragon, Targa XL, Premier XL, and StageScreen projection screens, and much more. With a 1,000-pound (454 kg) lifting capacity, Acrobat can be also used to lift a variety of other products such as scoreboards, lighting systems, and speakers. Travel range up to 34' (10 m).

View Models:

Viewing Surfaces:

You want beautifully detailed images, whatever the projector or conditions. Our unsurpassed screen technology delivers them. Our range of viewing surfaces feature solutions that handle 4K and 8K resolution, ambient light, dim projectors, wide viewing angles, high dynamic range (HDR), ultra-high-definition (UHD), acoustical transparency, and more.

To explore our full range of projection screen viewing surfaces, please click here.

Motor and Control Options:

What control system do you prefer? Rather than develop a proprietary automation system, we make sure our products can be used with any third party control system, including Control4 and Crestron.

Draper also provides a wide range of standalone control solutions for our motorized projection screens. Motors and Control options vary by screen model and compatible controls can be viewed on each projection screen model page.

Case Studies:

Draper audiovisual solutions can be found in virtually any imaginable vertical markets, including corporate, education, government, hospitality, healthcare, houses of worship, live events, sports and entertainment, transportation, residential, and more.

To explore our library of Project Profiles and full Case Studies, please click here.

Quick Feedback

We would love to get your thoughts so don't hesitate to send us your feedback!

Name
Email
What could we improve? (required)
Please enter the following characters to help us prevent spam:
nothuman
