Innovations in Solar Shading

Below, check out some of our most recent innovations in solar shading, including updates to FlexShade ReCharge, Clutch-Operated FlexShade NEXD, new options for IntelliFlex I/O control systems, stylish new Window Shade Fabrics, the latest in Digital Printing, and a brand-new gallery of Case Studies & Project Profiles.

FlexShade Recharge

Choose between 12V Recharge and 5V Recharge Motors.

Features quiet operation and ease of installation in difficult areas with no wiring or electrician needed.
Easily upgrade from Clutch-Operated FlexShade to FlexShade Recharge using current hardware and shade fabric. The Recharge motor head is the same size as a clutch.
Updated Hub V2 for easier Wi-Fi communication and control via phone app.
No disposable batteries and no battery wand. Rechargeable batteries are located inside the motor.
Choose between 12V Recharge (standard) and 5V Recharge (optional) motors.
5V Recharge motor features a universal Micro-USB charging port; no proprietary charger needed.
Available in sizes up to 12' (366 cm) wide.

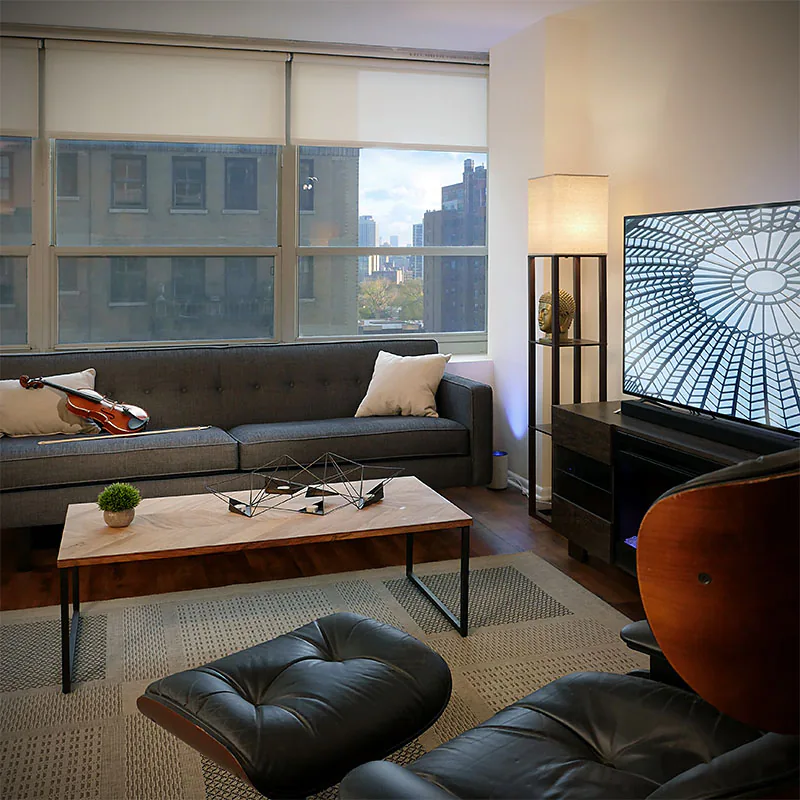

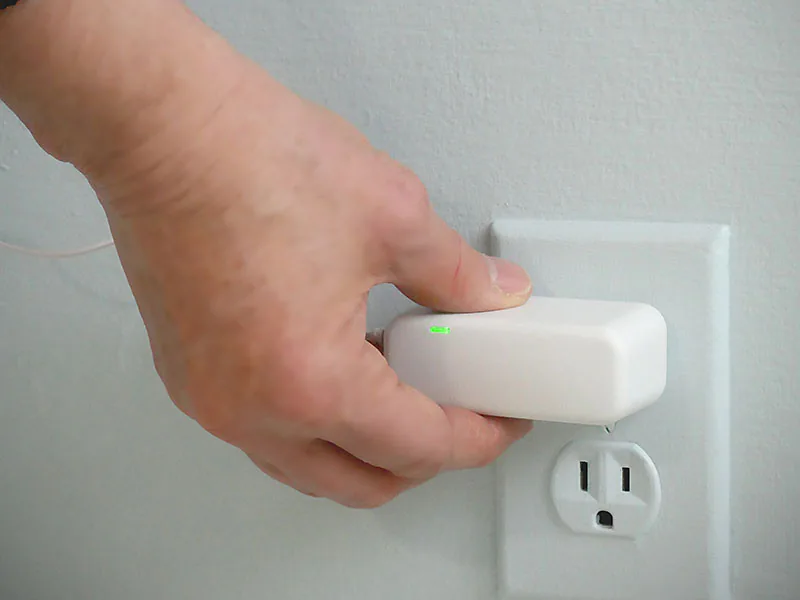

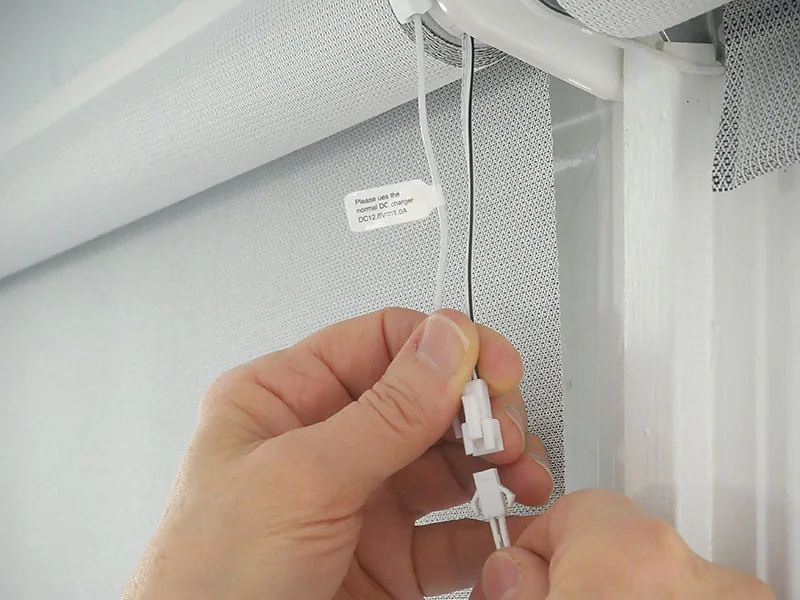

FlexShade Recharge - Simply plug in to occasionally recharge.

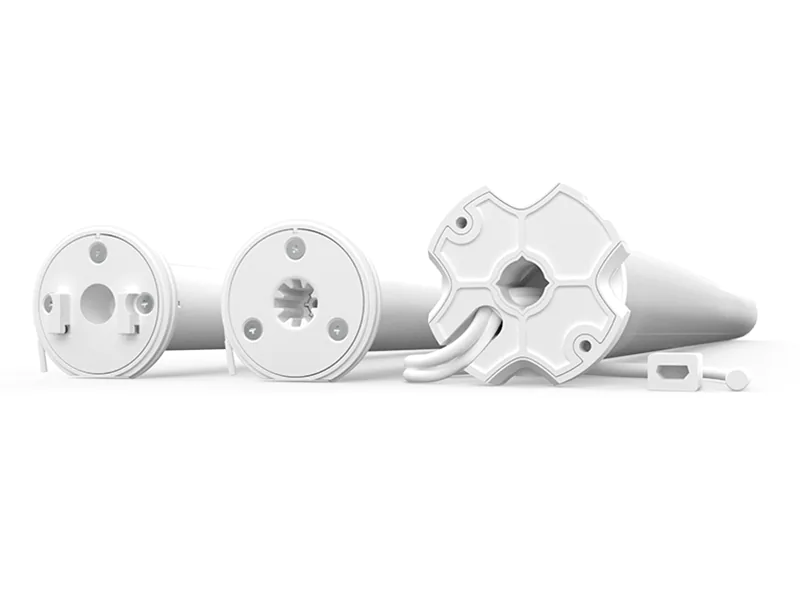

FlexShade Recharge - motor ends are the same size as Clutch-Operated FlexShade clutches for easy upgrades.

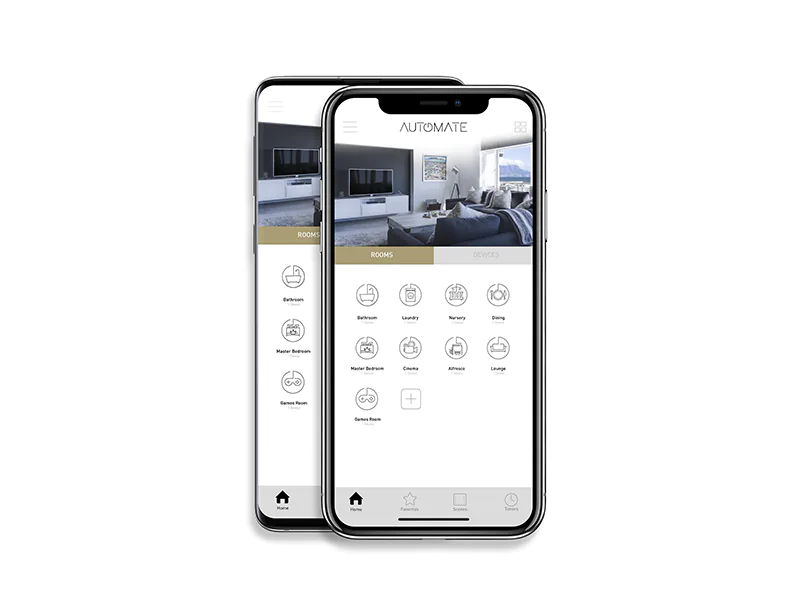

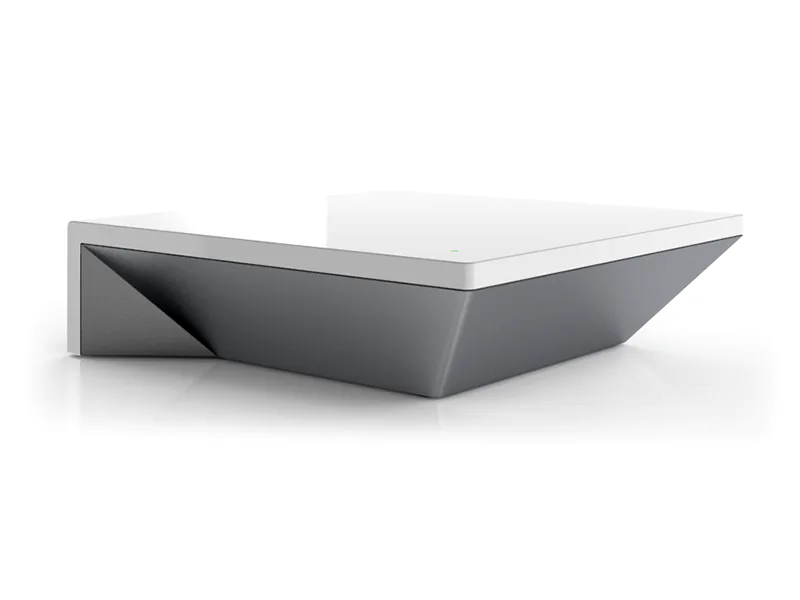

FlexShade Recharge - Updated Hub V2 allows easy WiFi communication and app control.

Clutch-Operated FlexShade NEXD

Now shipping in three hardware sizes: Slim, Small, and Large.

Premium, heavy-duty, durable clutch-operated roller shade.
Field convertible, universal mounting on ceiling, wall, or jamb.
Multiple keyways on idler bracket make installation easy.
Idler bracket allows fine leveling adjustment after installation.
Jamb/ceiling mount holes are pre-drilled; no need to drill them out in the field.
Dual roller configurations available in both Small and Large sizes. Increased spacing between rollers now allows for even larger dual shade sizes.
120 lb. test stainless steel bead chain (standard). Optional polyester chain available in 5 colors.
Two options for attaching shade fabric to roller: spline-in-channel (standard) or powerful tape.
Five hembar options: closed pocket (standard), open pocket, exposed round, 7/8" or 1½" light sealing.
Slim hardware size provides fully assembled cassette-style installation.
Ideal for commercial, healthcare, institutional, or educational settings.
Sizes up to 144" wide.

Clutch-Operated FlexShade NEXD - Slim size.

Clutch-Operated FlexShade NEXD - Small size.

Clutch-Operated FlexShade NEXD - Large size.

Clutch-Operated FlexShade NEXD - Small Dual Roller.

Clutch-Operated FlexShade NEXD - Large Dual Roller.

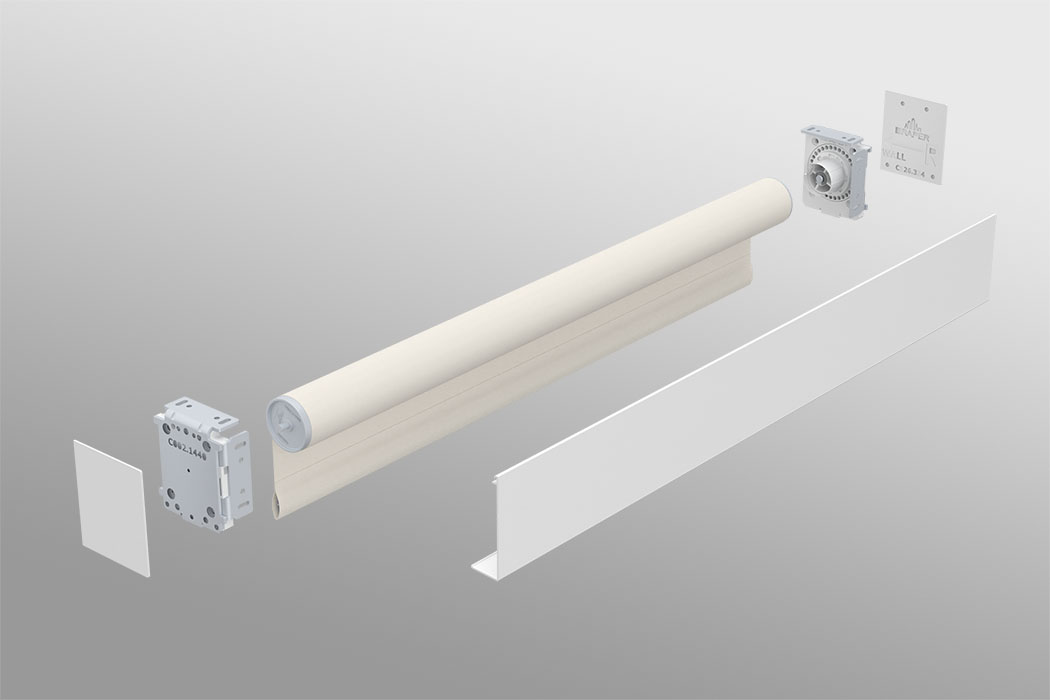

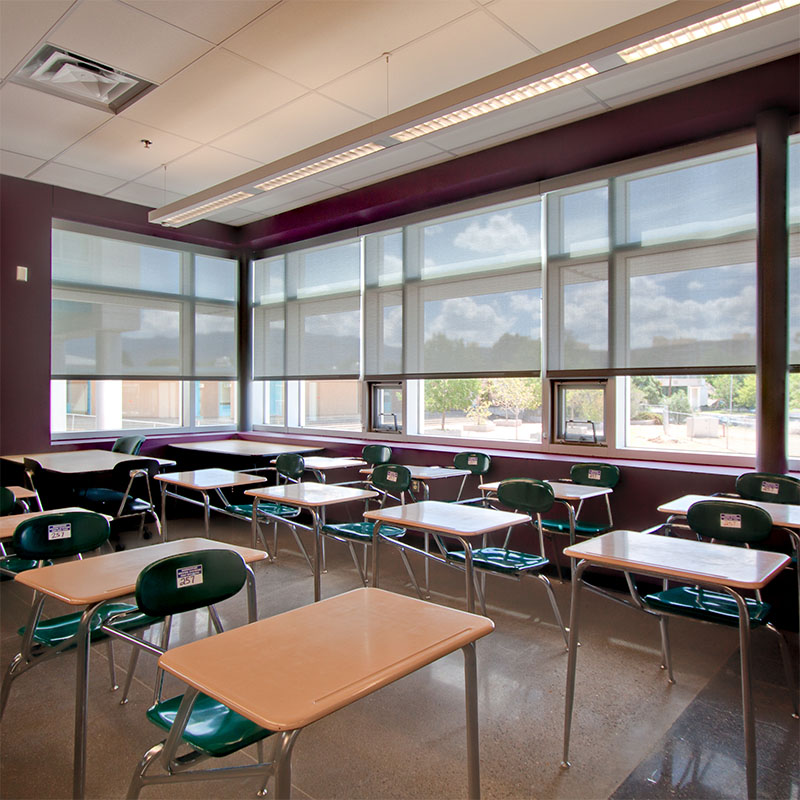

Clutch-Operated FlexShade NEXD with small hardware (bead chain not shown)

IntelliFlex I/O

A scalable and flexible control solution for motorized shades.

Scales easily to accommodate simple, moderate, and complex projects: up to 120 devices and 4000 feet of data bus line!
Intelligent motors communicate with control and automation devices through a wired network.
Power is distributed to the network from the shade motors.
Improved Standard Motor Control Isolating Relays: New look, easier to wire!

ISO Relay: C157.016 is being replaced by ISO Relay C157.038
GC4: Four Motor Group Isolating Relay C156.173 is being replaced by GC4 C156.309

New options for integration into IntelliFlex I/O systems:
- Central Network Controller: touchscreen interface that allows for whole building automation and sun tracking.
- IP Gateway: allows for I/O systems to be networked over multiple floors as part of the existing building network or as a completely standalone network.
- Sensor Interface with Sun Tracking (SSI+): allows entry-level automated glare control for small-scale projects.
- IntelliFlex I/O 15nm Motor: A more powerful motor for larger shade sizes.
- 1 and 4 Motor External Motor Controllers: allows standard 4-wire shade motors to work with IntelliFlex I/O components.
Highly customizable. Grow and adapt your network as needs change wihtout replacing existing hardware and wiring.

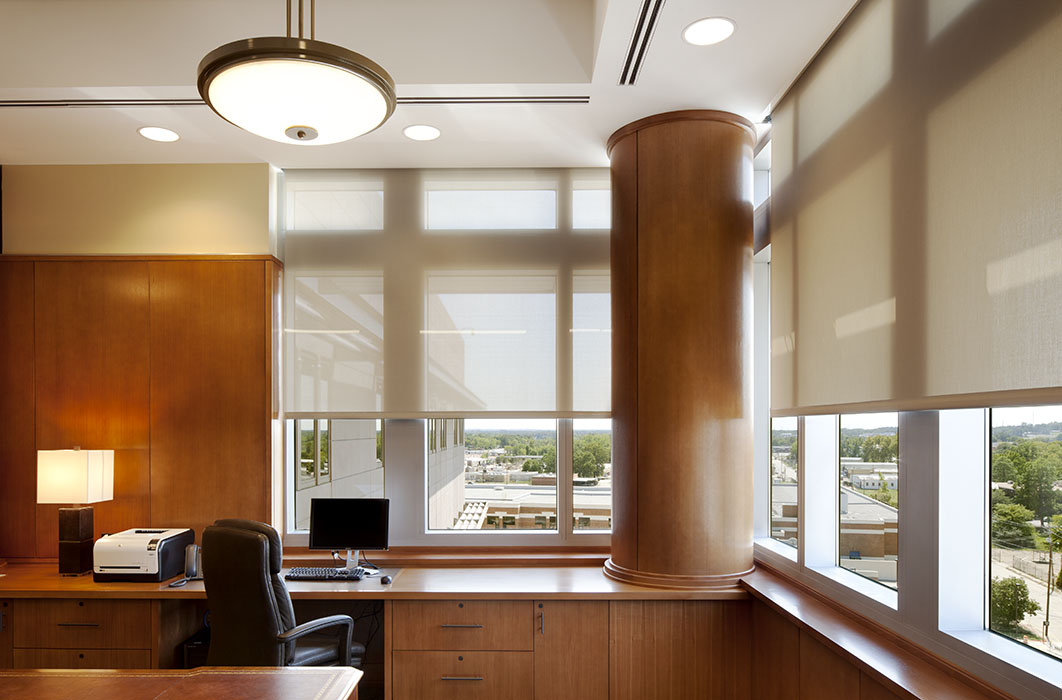

Motorized FlexShades featuring IntelliFlex I/O

Central Network Controller for IntelliFlex I/O

Sensor Interface with Sun Tracking (SSI Plus)Sensor Interface with Sun Tracking (SSI Plus)

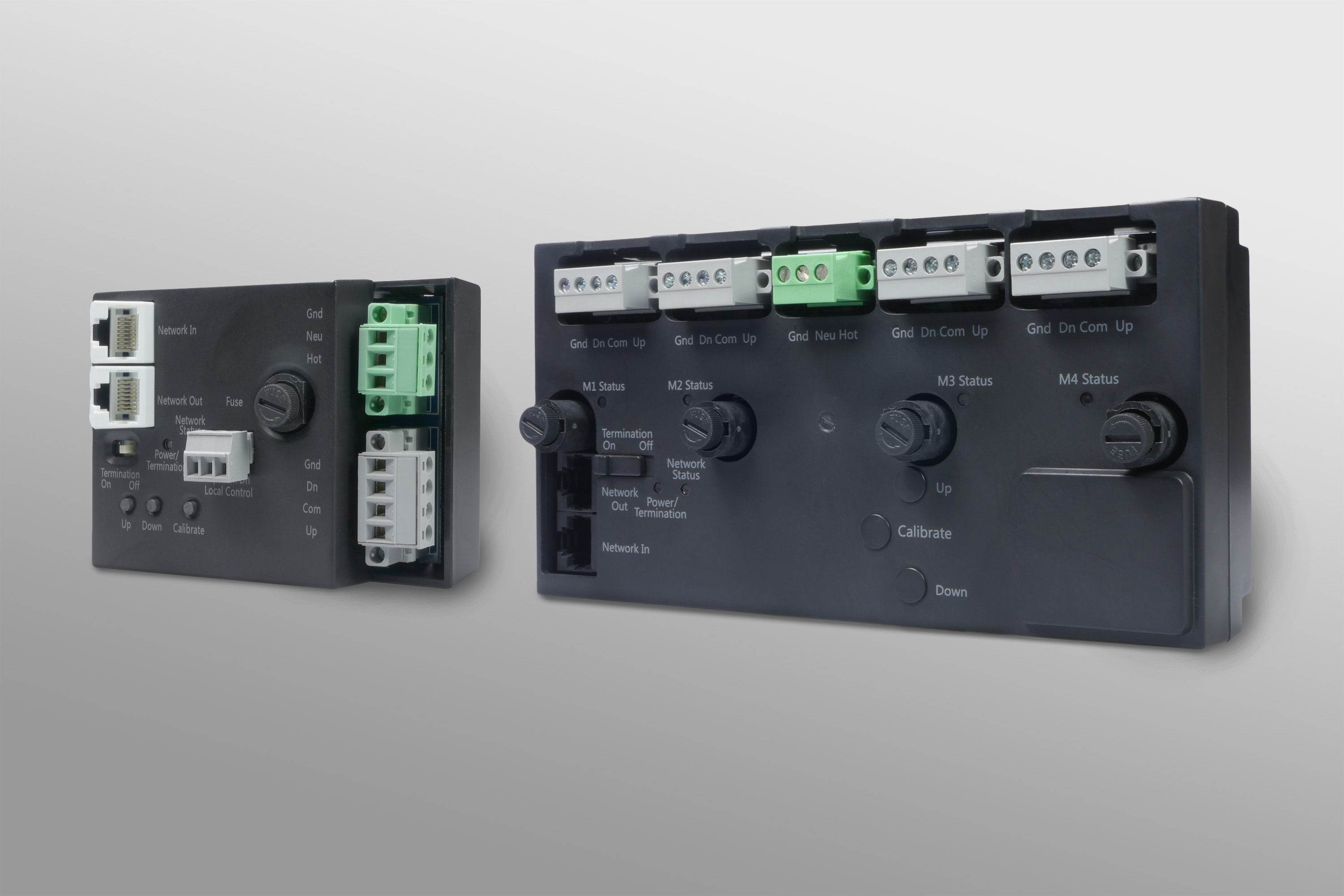

1 and 4 Motor External Motor Controllers for IntelliFlex I/O

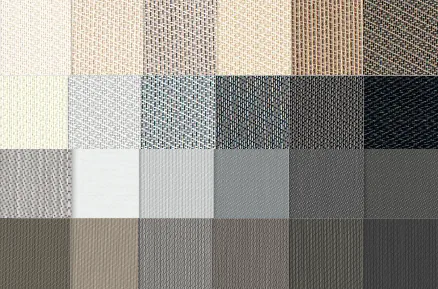

New Window Shade Fabrics

Striking fabrics in opaque, translucent, and mesh styles.

9803 3% by Mermet: Decorative, offset twill fabric available in 12 colorways.
T Screen 1% and 3% by Mermet: Updated fabric options. Reversible, conventional. Durability for interior or exterior applications in 12 colorways.
Phifer SW7800 and SW7850: New decorative 7800 blackout and 7850 light filtering fabrics.
Lower prices for KoolBlack by Mermet: See the 2021 Price Guide to review prices.
Discontinued Fabrics:

Mermet Vienne 5% & 10%
Mermet M Screen Chroma
Mermet Avila Twilight FR fabric has been discontinued and is no longer available. See blog.draperinc. com/2021/03/epa-ruling-means-avila-twilight-fr-not- available-for-now/ for more details.

Digital Printing

Crisp, high quality printing on your window shades performed in-house by certified color professionals.

Color matching provided for Pantone, Sherwin Williams, Benjamin Moore, and more color systems.
Custom color matching to your provided samples.
Custom solid colors on the front or back of the shade material.
Print your own logo or artwork to create custom signage.
Choose an elegant repeating pattern to coordinate with your décor.
Water-based latex inks are UL ECOLOGO certified, and GREENGUARD GOLD certified with no off-gassing.
High-quality images digitally produced with incredibly sharp detail.
Brilliant, vibrant color reproduction throughout a wide color gamut.
Most fabrics allow printing on both sides of the shade.
Our printing staff are Digital Color Professionals Certified by the Printing United Alliance.

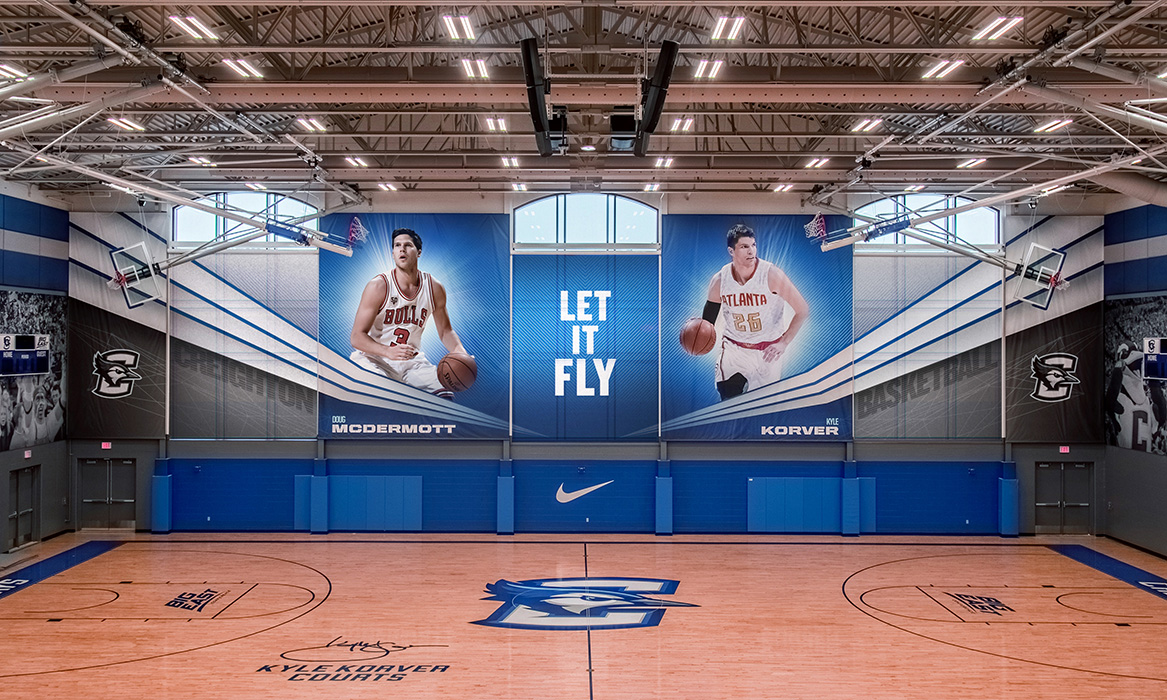

Digitally Printed windows shades installed at Creighton University. Photo: Advent, LLC.

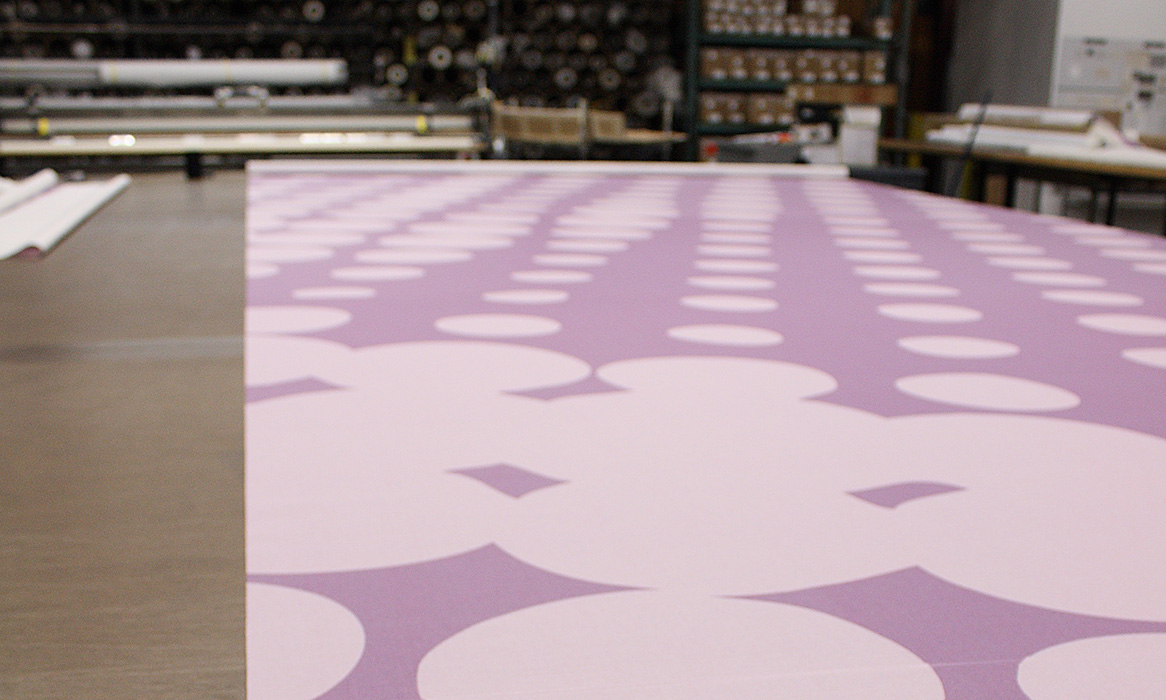

Digitally Printed FlexShade 2 window shades during manufacturing.

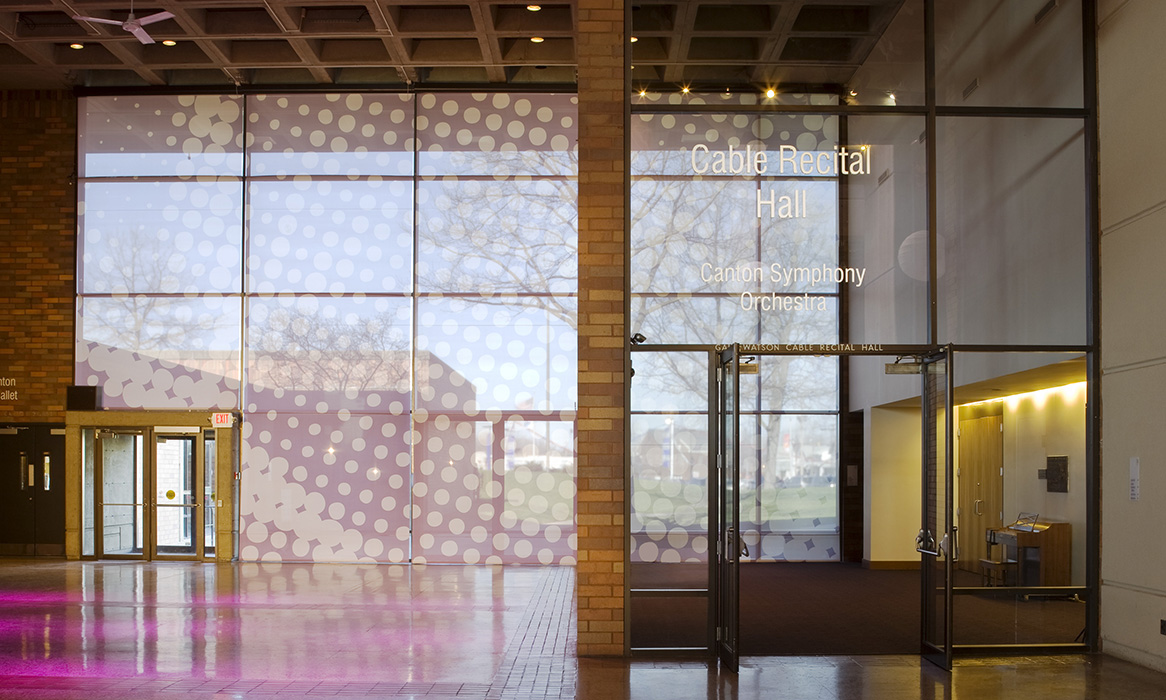

Digitally Printed FlexShade 2 window shades installed at Canton Cultural Center, Canton, OH. Photography © Jason Meyer.

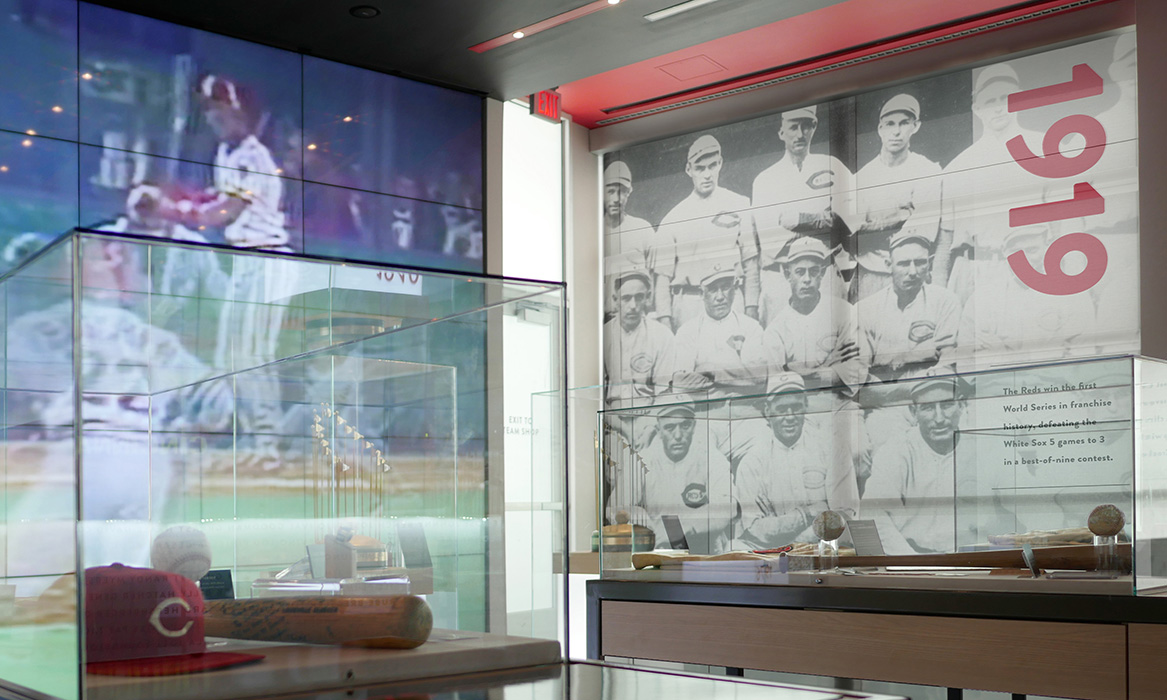

Digitally Printed FlexShade window shades installed at the Reds Hall of Fame and Museum, Cincinnati, OH.

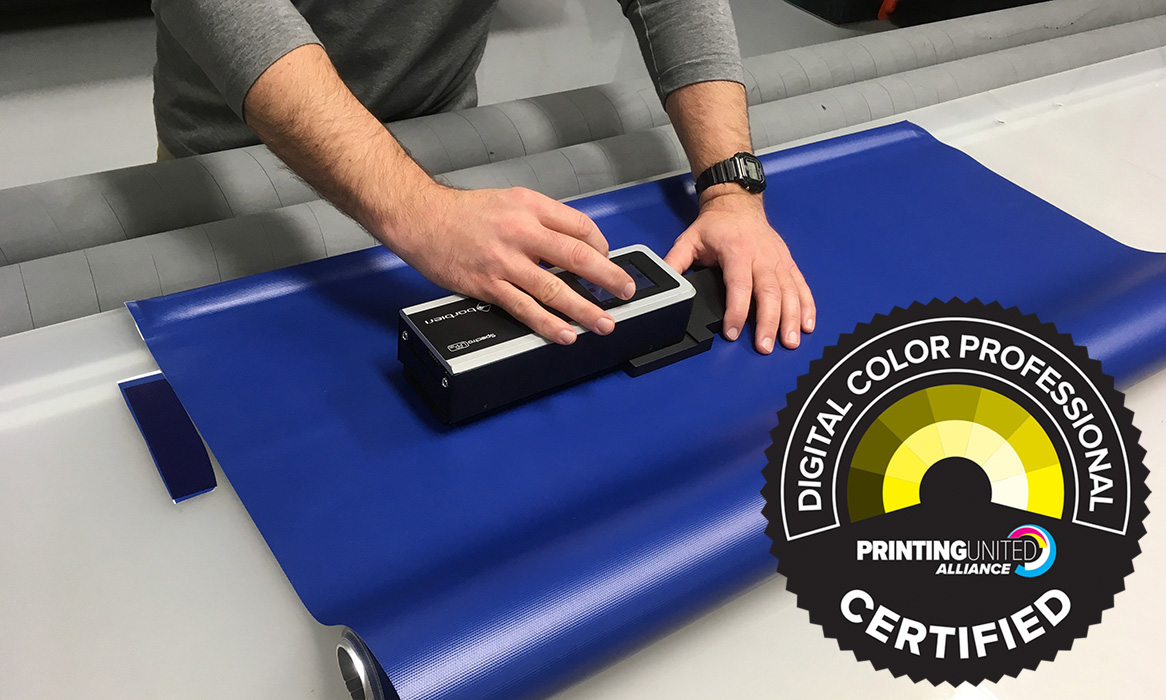

Certified Digital Color Professionals performing color matching with spectrophotometers.

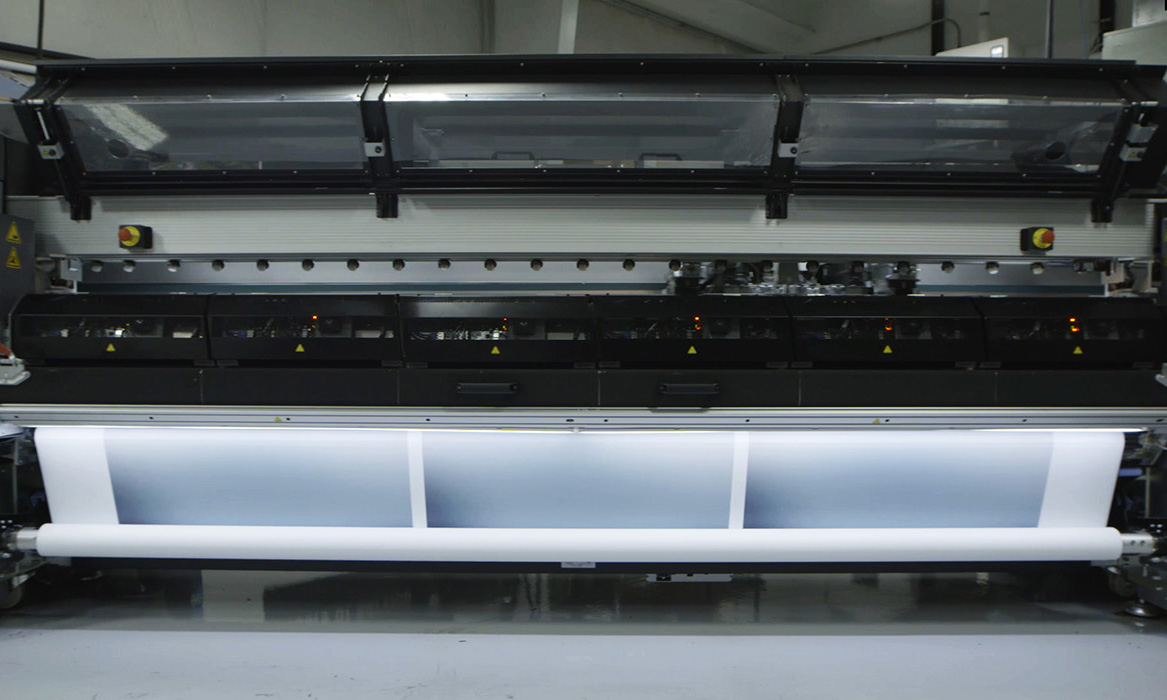

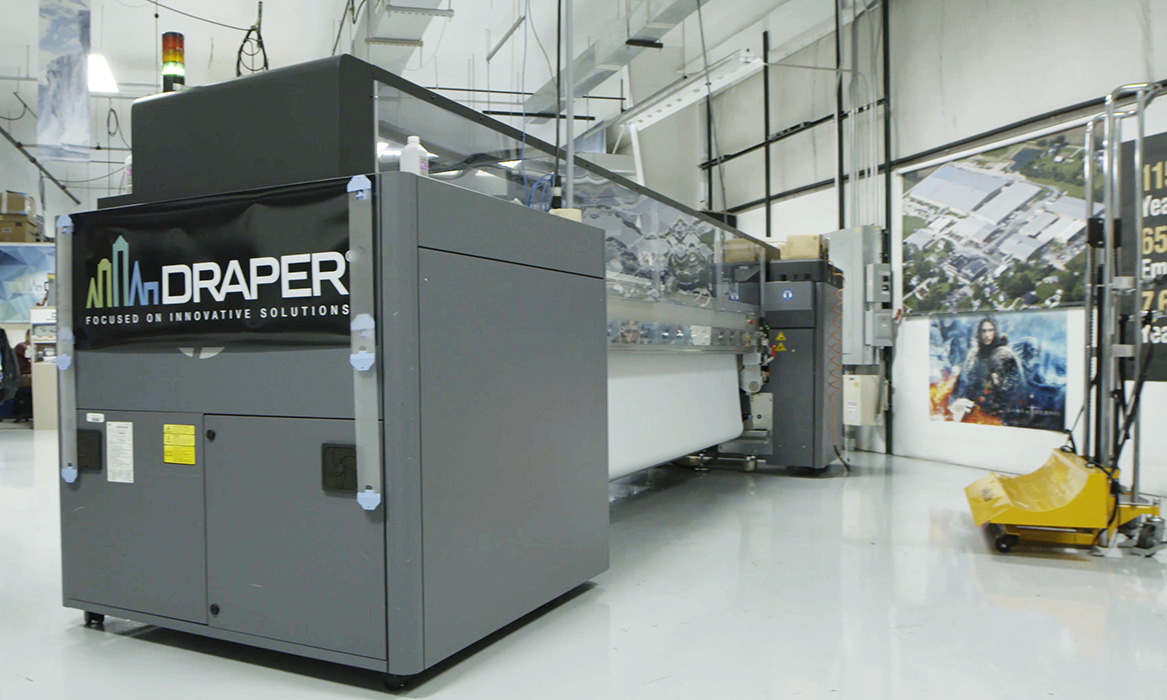

Digital printer accommodates up to 126 inch wide rolls of fabric.

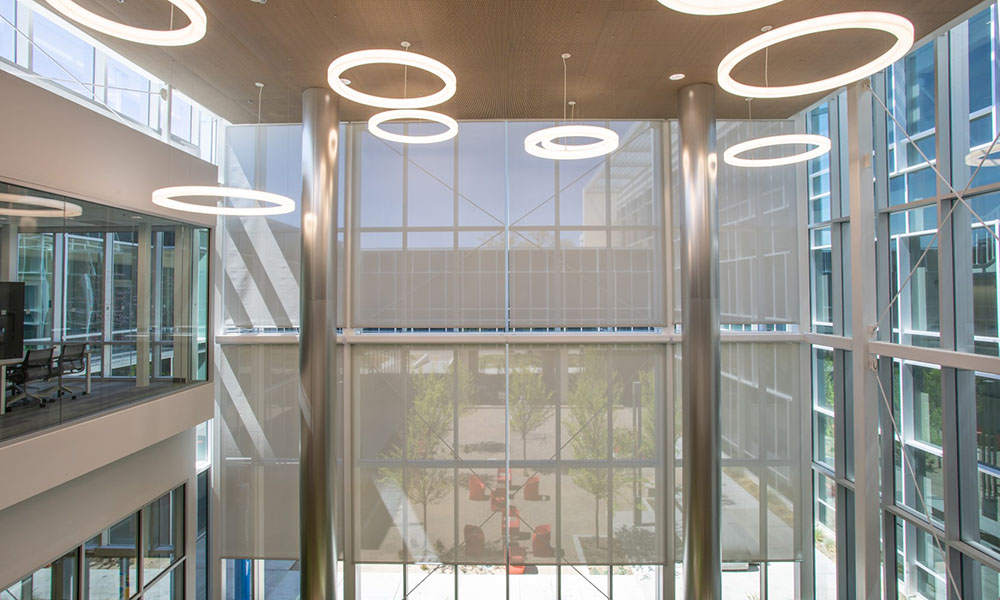

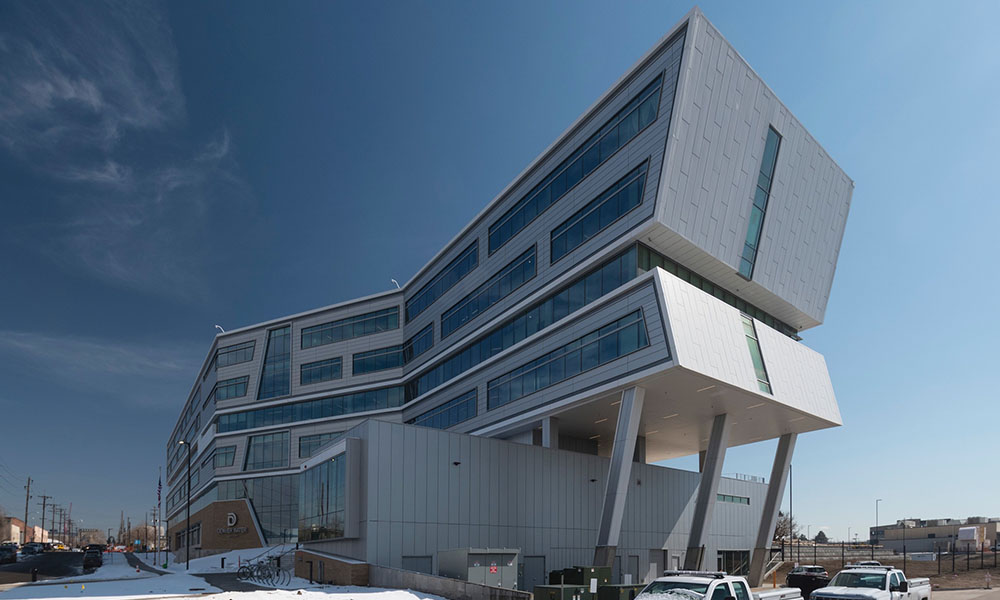

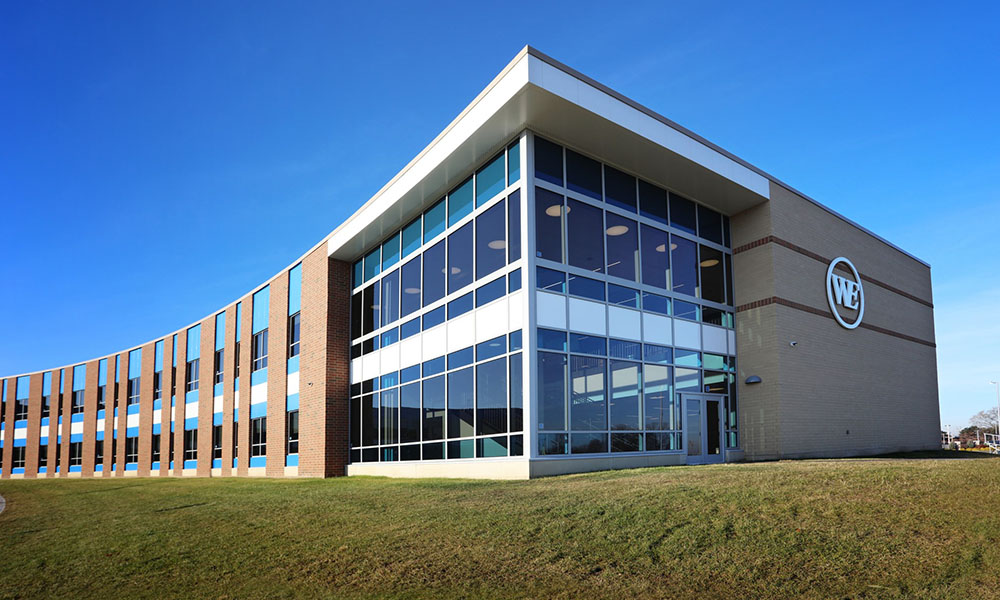

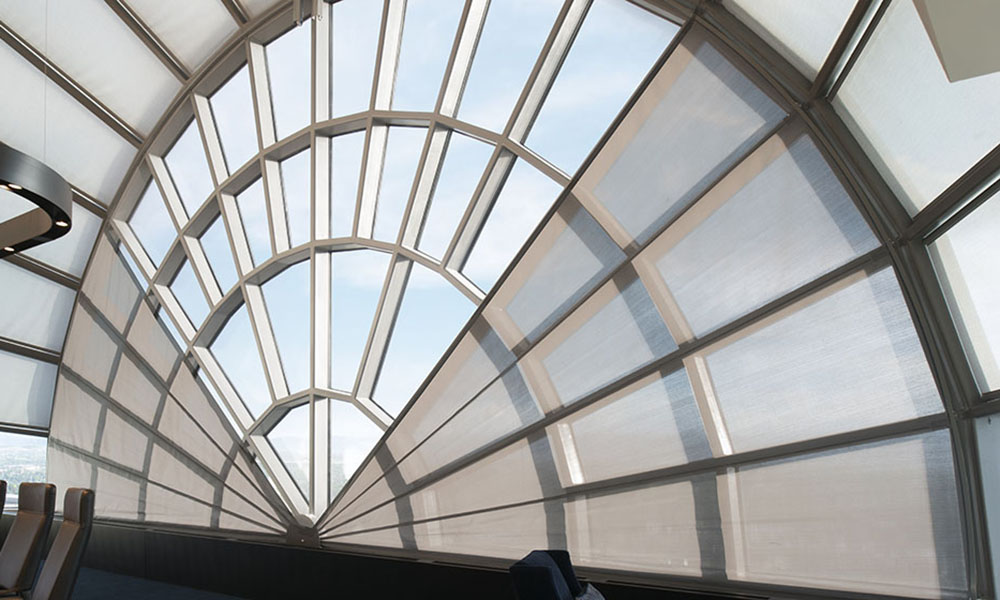

Case Studies and Project Profiles

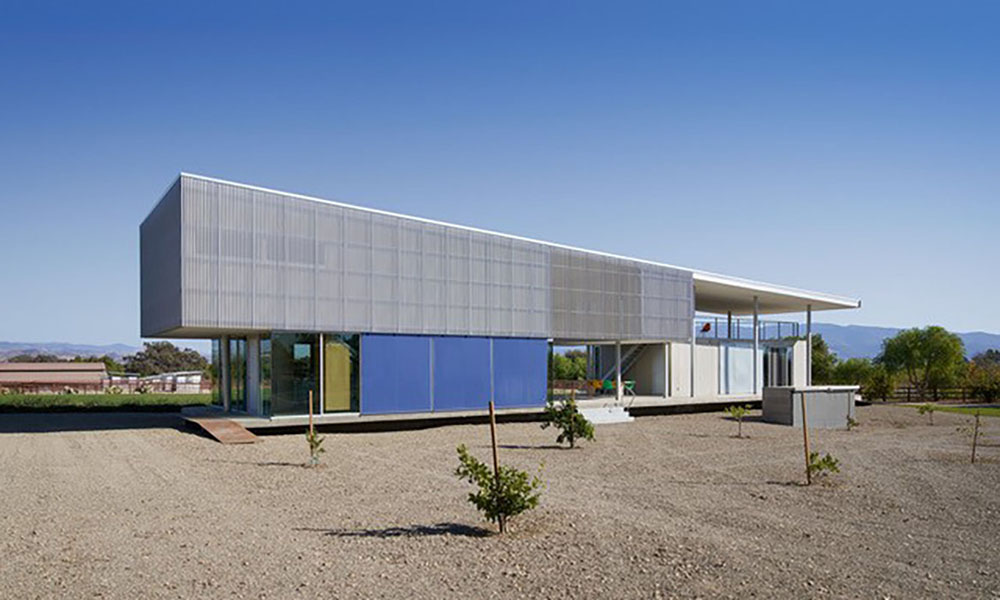

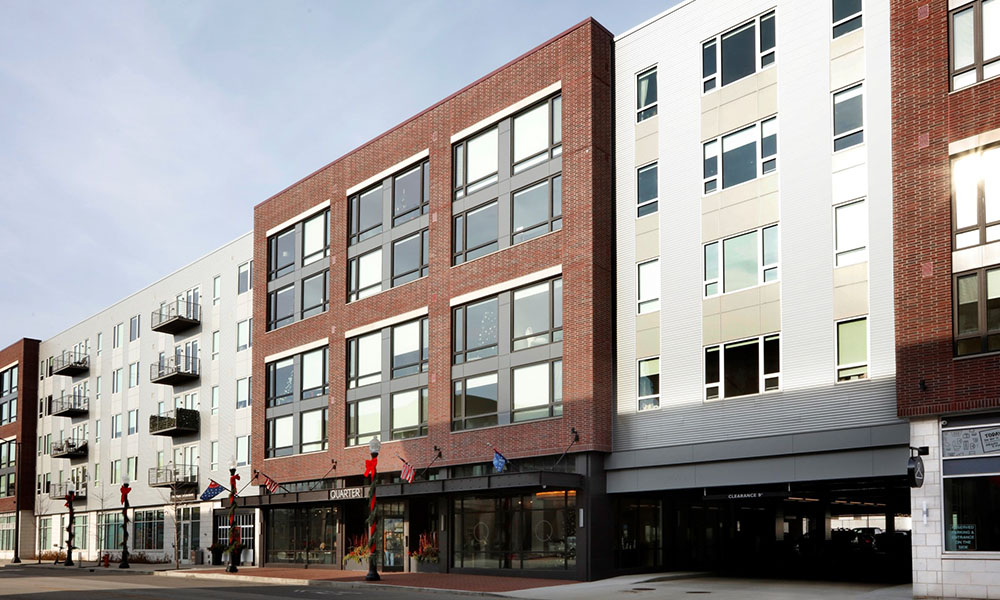

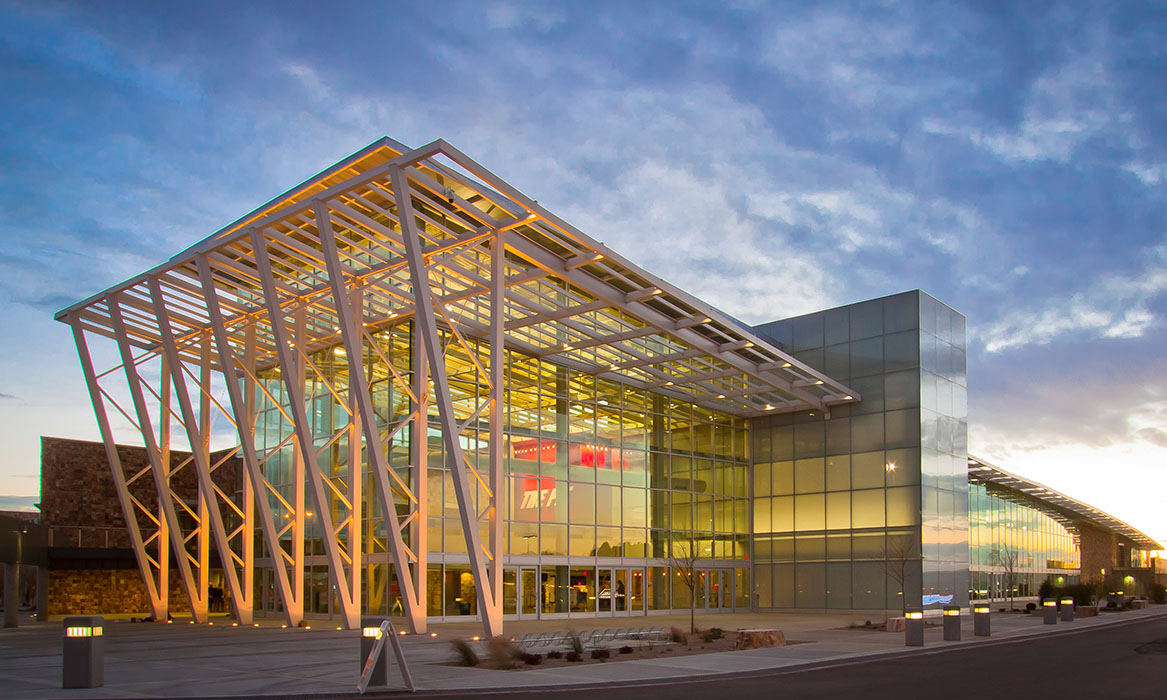

Explore featured installations of Draper solar control products and solutions.

We have launched a new gallery of projects featuring Draper products installed in locations across the country. The projects represented here range from large architectural facilities to residential installations in many markets. Sort projects by product line, by vertical market, or both. Click below to explore these projects.
