Multiple Key Switch Gang Plate

Features up to seven gang sizes, stainless steel cover plates, and momentary contact, 3-position key switches.

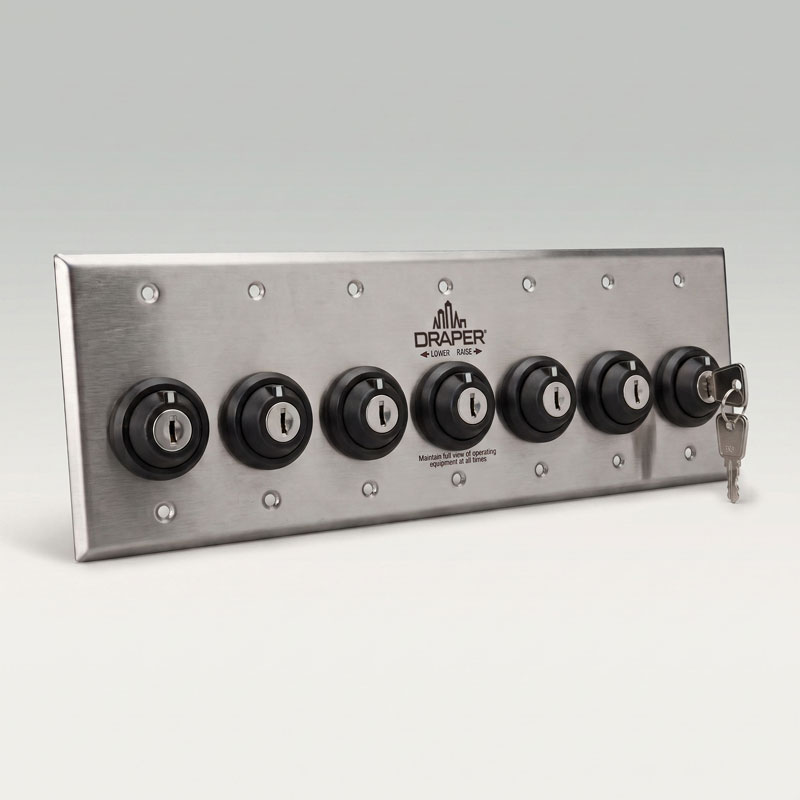

The Multiple Key Switch Gang Plate eliminates the need for individual key switches to operate every winch, divider curtain, or height adjuster. It offers up to seven gang sizes for a cleaner look. Key switches provide the required protection against operation by unauthorized users. Our gymnasium equipment products are controlled with momentary contact, 3-position (on-off-on) flush mount key switches. Switches are mounted on stainless steel cover plates and extend no more than ¼" (6 mm) beyond cover plate. They are spring-loaded to automatically return to the off position.

Product Specs

  • Momentary contact, 3 position (on-off-on) flush mount key switches available up to 7 ganged switches.
  • Ganged switches require switch boxes that measure 3" (76 mm) h x 1-7/8" (48 mm) w, times the number of switches and 2-½" (64 mm) d.
  • UL recognized switches rated at 25 amps, up to 277 volts, and 1 hp at 125 volts.
