MANUFACTURING INNOVATION SINCE 1902
Model Selector: Use this drop down list if you know the name of the model you are looking for.

TecVision™ - Engineered Screen Technology

TecVision

Award Winning

  • 2015 Winner Innovative Products
  • Best of Show 2015
  • Commercial Integrater Best
  • ADEX Platinum Award
  • TI ExC!ite Award
  • Best of Infocomm Award 2014
  • Government Video Best of Show AwardTNT @ ISE
  • ISE 2016 Best of Show Installation
  • ISE 2016 Best of Show AV Technology

TecVision™ has been recognized with many awards this year, and last year. Honors have been received at six trade shows since InfoComm 2014, three in the US, two in Europe.

  • 2016 ISE Best of Show from AV Technology Magazine
  • 2016 ISE Best of Show from Installation Magazine
  • 2016 Top New Technology (TNT) @ ISE Award from CEPro, Commercial Integrator, and Tech Divisions
  • 2015 Innovative Product Award from Sound& Video Contractor Magazine
  • Best of Show, InfoComm 2015 - Sound & Video Contractor Magazine
  • Best Video Projection Screen 2015 - Commercial Integrator Magazine
  • Smart Building Awards 2015: Best Projector Screen - Essential Install Magazine (UK)
  • Best of Show, ISE 2015 - AV Technology
  • Best of Show, ISE 2015 - Residential Systems
  • Platinum ADEX Award 2015 - Design Journal
  • Bold Engineering 2014: 30 Innovative Products - Sound & Video Contractor Magazine
  • ExC!te 2014 - Technology Integrator Magazine
  • Best of InfoComm 2014 - rAVe Publications
  • Best of Show, InfoComm 2014 - Government Video Magazine

A New Reality in Picture Quality

In recent years projectors and projection technology have been advancing quickly.

Draper has worked to advance our screens as well. We have focused resources on product design, with innovations like the Access family of motorized screens, improved tab tensioning system and revolutionary modular portable screens.

A few years ago we moved our primary focus to the surfaces themselves, and their optical performance. We built a world class testing lab, and worked with consultants and key suppliers to identify and refine ingredients to improve the optical performance of our surfaces. Since then we have introduced 16 new surfaces to address specific needs in the marketplace. And we developed the new standard in surface planning tools, the Draper Projection Planner. You can gain access to this and other great tools by registering for the Draper Pro Portal in the Login links above.

There are few companies in the world who are experts in designing projection screen surfaces. Most screen fabrics are made by firms whose primary business is manufacturing textiles for other purposes. We have made a major investment in equipment, expert personnel and research time specifically to offer a line of revolutionary new surfaces that are unmatched by any other screen manufacturer in the world.

TecVision™ Engineered Surface Technology is currently offered in eight exclusive formulations on Draper tab tensioned and permanently tensioned screens. Five white surfaces are available with gains ranging from 0.7 to 1.8 across remarkably wide viewing cones. Three ambient light rejecting grey surfaces offer excellent performance under higher room light levels.

These premium surfaces are not sold online and are only available through qualified Draper dealers.

Why TecVision?

When Draper committed to offering a line of revolutionary new surfaces, we started with exhaustive research. TecVision was born as we researched many competitive surfaces, explored the chemistry of screen surfaces and refined processes to manufacture screen surfaces to much stricter tolerances for unparalleled performance and quality.

How Did We Do It?

Quality

Our dedicated TecVision production and lab staff, using custom designed equipment, constantly monitors the process, performing multiple checks to ensure TecVision surfaces remain within tolerances which ensure the highest picture quality possible.

Precision Manufacturing

When it comes to consistency of gain, contrast and gloss across the entire screen no viewing surface anywhere offers better uniformity than TecVision surfaces.



Unique Properties

TecVision surfaces offer unparalleled performance and features that set them apart from the competition.

  • All TecVision surfaces are ISF Certified for optical color accuracy and fidelity by the Imaging Science Foundation. No other line of viewing surfaces in the AV industry can make this claim!
  • TecVision surfaces have better off axis performance than competition with similar product specifications
  • TecVision surfaces offer minimal variance in gain spec and optimal uniformity
  • TecVision grey surfaces offer better ambient light performance qualities (XH900X Grey and MS1000X Grey)
  • TecVision surfaces feature carefully formulated light absorbing dark backing which prevents picture degradation from light behind the screen
  • TecVision non-perforated surfaces are 8K ready to ensure optimal image performance under the highest resolutions. Perforated TecVision surfaces are 4K ready.



Optically Seamless Technology

With new Optically Seamless technology, TecVision screen surfaces are now available in sizes as large as 23' high by 67' wide, depending on the model. Screens larger than 12' high may be fused with Draper's exclusive Optically Seamless process. Draper warrants that the fusion will not be seen, with or without projection, from distances of five feet or more.

White Paper - Optically Seamless Technology (pdf)

TecVision Surfaces are available on these Draper Projection Screens

  • Access FIT/Series V
  • Access/Series V
  • Access XL/Series V
  • Access MultiView/Series V
  • Artisan/Series V
  • Clarion
  • Edgeless Clarion
  • FocalPoint
  • Lace & Grommet
  • Onyx
  • Paragon/Series V
  • Premier
  • Premier/Series C
  • Profile
  • Shadow Box Clarion
  • Signature/Series V
  • Silhouette/Series C
  • Silhouette/Series V
  • StageScreen
  • Truss Cineperm
  • Ultimate Access/Series V







Individual TecVision Surfaces

4K readyBelow are the eight surfaces that make up the current TecVision family of viewing surfaces and the applications for which they are best suited. All TecVision surfaces are engineered for high contrast, precise resolution, color accuracy and the broadest possible viewing cone. All TecVision non-perforated surfaces offer superior quality, consistency, uniformity and are 8K ready. All NanoPerforated TecVision surfaces are 4K ready. Watch for additions to the TecVision line of surfaces as we uncover additional needs in the AV industry.
  • All TecVision surfaces are engineered for high contrast, precise resolution, color accuracy and the broadest possible view cone.
  • All TecVision surfaces offer superior quality, consistency, uniformity and are 8K ready. All NanoPerforated TecVision surfaces are 4K ready.
  • Also available in acoustically transparent perforated or nanoperforated surfaces. Perforated surfaces are not recommended for viewing less than 20' from the screen. Nanoperforated surfaces are for viewing surfaces less than 10' from the screen.
What ISF Certification Means (pdf)

XH700X Grey

TecVision XH900X Grey

Extra Wide Viewing Cone

High Contrast

On-Axis Gain of 0.7

ISF logoISF Certified. XH700X Grey performs best in moderate ambient light when optimal uniformity is desired, and wide viewing angles (blending images, even on screens with great curvature). XH700X Grey is 8K ready to ensure optimal image performance at the highest resolution and is ISF™ Certified for color accuracy. Perforated TecVision surfaces are 4K ready.

Gain Chart

(click to enlarge)

Gain Chart

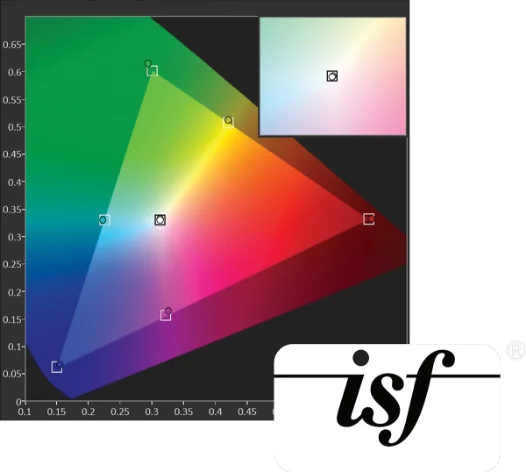

Chromaticity Chart

Chromaticity Chart

Technical Data Sheet (pdf)

XH900X Grey

TecVision XH900X Grey

Extra Wide Viewing Cone

High Contrast

On-Axis Gain of 0.9

ISF logoISF Certified. XH900X Grey viewing surface is best for moderate to high ambient light and wide viewing angles. XH900X Grey is 8K ready to ensure optimal image performance at the highest resolution and is ISF™ Certified for color accuracy. Perforated TecVision surfaces are 4K ready.

Gain Chart

(click to enlarge)

Gain Chart

Chromaticity Chart

Chromaticity Chart

Technical Data Sheet (pdf)

MS1000X Grey

XH1000X Grey

Moderate Viewing Cone

Superior Contrast

On-Axis Gain of 1.0

ISF logoISF Certified. MS1000X Grey is best for high ambient light and moderate viewing angles. MS1000X Grey is 8K ready to ensure optimal image performance and is ISF™ Certified for color accuracy. Perforated TecVision surfaces are 4K ready.

Gain Chart

(click to enlarge)

Gain Chart

Chromaticity Chart

Chromaticity Chart

Technical Data Sheet (pdf)

XT1000X White

TecVision XT1000 White

Extra Wide Viewing Cone

Typical Contrast

On-Axis Gain of 1.0

ISF logoISF Certified. XT1000X White is best in controlled ambient light where optimal uniformity and wide viewing angles are required (screening rooms, home theatre and blended applications). XT1000X White is 8K ready to ensure optimal image performance and is ISF™ Certified for color accuracy. Perforated TecVision surfaces are 4K ready.

Gain Chart

(click to enlarge)

Gain Chart

Chromaticity Chart

Chromaticity Chart

Technical Data Sheet (pdf)

XT1100X White

MS1000X Grey

Extra Wide Viewing Cone

Typical Contrast

On-Axis Gain of 1.1

ISF logoISF Certified. XT1100X White is recommended when projector brightness and screen size dictate the need for a modest increase in brightness. XT1100X White is 8K ready to ensure optimal image performance at the highest resolution and is ISF Certified for color accuracy. Perforated TecVision surfaces are 4K ready.

Gain Chart

(click to enlarge)

Gain Chart

Chromaticity Chart

Chromaticity Chart

Technical Data Sheet(pdf)

XT1300X White

XT1300X White

Extra Wide Viewing Cone

Typical Contrast

On-Axis Gain of 1.3

ISF logoISF Certified. XT1300X White performs best in controlled ambient light and projector brightness is slightly lower than desired. XT1300X White is 8K ready to ensure optimal image performance and is ISF™ Certified for color accuracy. Perforated TecVision surfaces are 4K ready.

Gain Chart

(click to enlarge)

Gain Chart

Chromaticity Chart

Chromaticity Chart

Technical Data Sheet (pdf)

XT1600X White

XH1600X White

Extra Wide Viewing Cone

Typical Contrast

On-Axis Gain of 1.6

ISF logoISF Certified. XT1600X White performs best where ambient light is controlled but projector brightness is moderately lower than desired. XT600X White is 8K ready to ensure optimal image performance and is ISF™ Certified for color accuracy. Perforated TecVision surfaces are 4K ready.

Gain Chart

(click to enlarge)

Gain Chart

Chromaticity Chart

Chromaticity Chart

Technical Data Sheet (pdf)

XT1800X White

XT1800X White

Extra Wide Viewing Cone

Typical Contrast

On-Axis Gain of 1.8

ISF logoISF Certified. XT1800X White performs best where ambient light is controlled but projector brightness is significantly lower than desired. XT1800X White is perfectly suited for active 3D or color combining passive 3D systems. It is 8K ready to ensure optimal image performance and is ISF™ Certified for color accuracy. Perforated TecVision surfaces are 4K ready.

Gain Chart

(click to enlarge)

Gain Chart

Chromaticity Chart

Chromaticity Chart

Technical Data Sheet (pdf)



Brochure (flip book) | Brochure (pdf) | Case Study (pdf)
