Cineframe System 200

Cineframe System 200
Cineframe System 200

Click an image to enlarge
in a separate window


Offers maximum flexibility of design and structural integrity. Provides complete structural integrity and is self-supporting, eliminating the possibility of screen warpage. Offers maximum flexibility of design while accommodating rear screens of any size. Completely unitized for perfectly uniform contiguous images regardless of the number of screens or tiers in the array.


  • Complex panorama radius video walls are executed with precision.

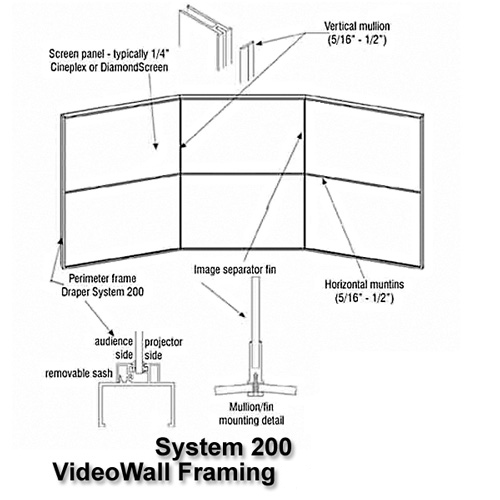

  • Patented two-piece image separator system, consisting of vertical mullions and horizontal muntins enable removal of individual screens within the video wall without disturbing the rest of the system.
  • Mullion widths range from 5/16" to 1/2" wide, and horizontal muntins from 5/16" to 1/4" wide, depending upon screen size and video wall configuration.
  • Light separating baffles eliminate over scan between adjacent projected images.
  • Modular design allows for ease of installation.
  • Choice of four rigid rear screen types, with individual screen sizes ranging from 30" through 180" diagonally. IRUS, Vortex, Cinescreen®, DiamondScreen™.
  • Dimensional CAD drawings are provided for each videowall project.
  • Can be used in conjunction with our Projector Support Structure.
  • Optional Mirror Manager
  • Warranted for one year against defects in materials and workmanship.

SUPPORTING DOCUMENTS



CAD (dwg)

CAD (pdf)

Catalog

Instructions

CSI 3-Part Specs
