Draper FlexShade Motor Options
No one offers more motor options than Draper. We have a solution for any application. Whether you are looking for quiet motors, motors with built-in radio receiver, battery or low voltage operation, Draper has a solution.
Standard Motors | Radio Motors | Intelligent Technology Motors | Battery & 24 Volt Quiet Motors
These motors have no built-in intelligence and are 120V with a 4-wire pigtail. Standard Motors are used with IntelliFlex® Control System Components. Control pricing should be figured separate from shade pricing. Quiet standard motors can be priced as an upgrade from standard motors.
 |

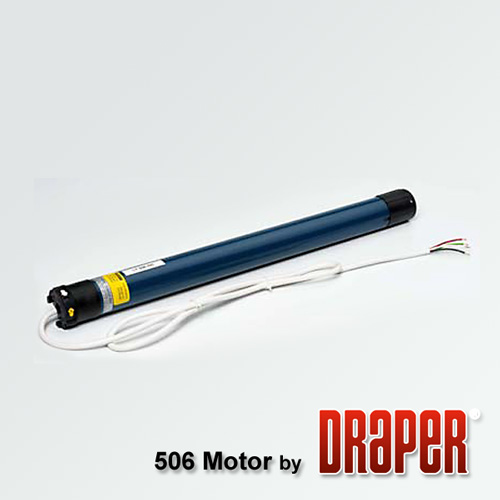

506 Motor with quick disconnects | |
Has 1' cord with Anderson plug. This is the standard motor for Motorized FlexShades. These motors cannot be parallel wired. For other options and restrictions please read product installation instructions and the Motorized Shade Handbook.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
| return to top | ||
 |
506 Motor without quick disconnects | |
Has 6' cord with no plug. This the standard motor for LightBloc FlexShades and SkyLight FlexShades. These motors cannot be parallel wired. For other options and restrictions please read product installation instructions and the Motorized Shade Handbook.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
| return to top | ||
 |
506 FlexShade 2 Motor | |
These motors cannot be parallel wired. For other options and restrictions please read product installation instructions and the Motorized Shade Handbook.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
| return to top | ||
|
|
510 Motor | |
Has 6' cord with no plug. This motor is a step up in power from the 506 motor. These motors cannot be parallel wired. For other options and restrictions please read product installation instructions and the Motorized Shade Handbook.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
| return to top | ||
 |

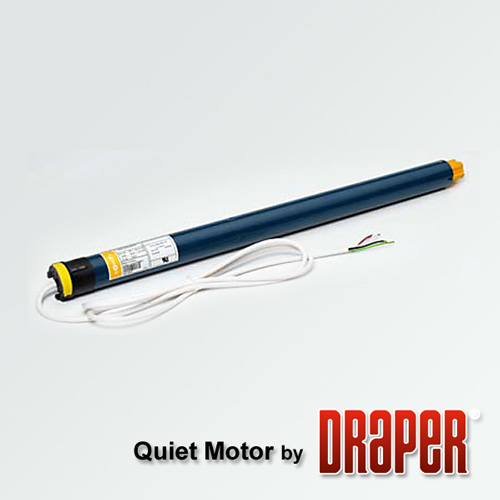

Quiet Motor with quick disconnects | |
Has 1' cord and Anderson plug. Quiet motors operate at 44Db. Motor noise is reduced by approximately 30%. These motors cannot be parallel wired. For other options and restrictions please read product installation instructions and the Motorized Shade Handbook.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
| return to top | ||
|
|
Quiet Motor without quick disconnects | |
Has 6' cord with no plug. Not to exceed 6 Nm lifting capacity. Quiet motors operate at 44Db. Motor noise is reduced by approximately 30%. These motors cannot be parallel wired. For other options and restrictions please read product installation instructions and the Motorized Shade Handbook.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
| return to top | ||
 |
510 FlexShade 2 Motor | |
These motors cannot be parallel wired. For other options and restrictions please read product installation instructions and the Motorized Shade Handbook.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
| return to top | ||
 |
660 Motor | |
for the Colossal Only. These motors cannot be parallel wired. For other options and restrictions please read product installation instructions and the Motorized Shade Handbook.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
| return to top | ||
These motors have a built-in radio receiver and are 120V with a 3-wire pigtail. 220V motors are not listed but available by quotation.
 |

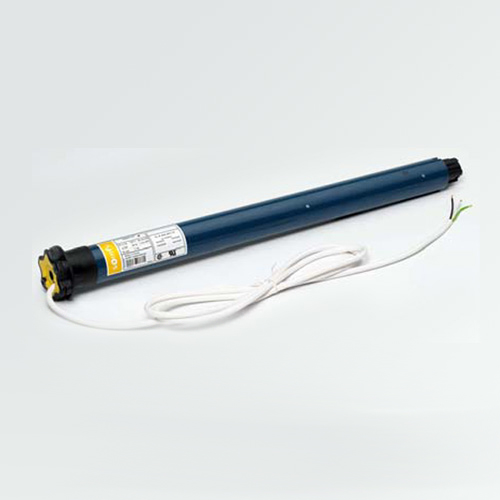

506 Altus Motor | |
Has 6' cord with no plug. These motors may be parallel wired, and may plug into a three prong outlet for power with a cable option selected from the group below.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
| return to top | ||
|
|
510 Altus Motor | |
Has 6' cord with no plug. These motors may be parallel wired, and may plug into a three prong outlet for power with a cable option selected from the group below.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
| return to top | ||
 |
504 Altus Quiet Motor | |
These motors may be parallel wired, and may plug into a three prong outlet for power with a cable option selected from the group below.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
| return to top | ||
 |
506 Altus FlexShade 2 Motor | |
These motors may be parallel wired, and may plug into a three prong outlet for power with a cable option selected from the group below.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
| return to top | ||
 |
510 Altus FlexShade 2 Motor | |
These motors may be parallel wired, and may plug into a three prong outlet for power with a cable option selected from the group below.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
| return to top | ||
Intelligent Technology Motor Options
These motors have a built-in encoder and controller and are 120V with a 3-wire pigtail and a data cable. Motorized product grids in this price list are figured with standard motors. These motors require an upgrade cost be added to the price.
 |

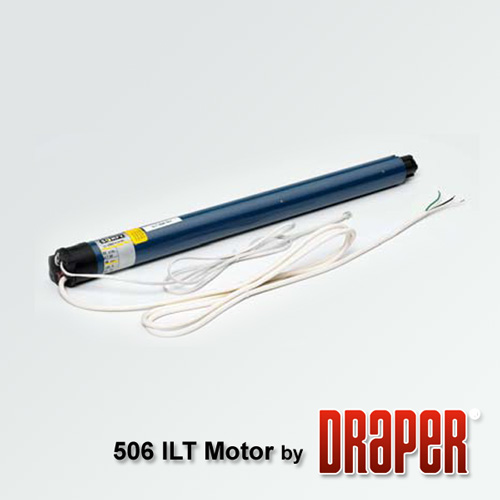

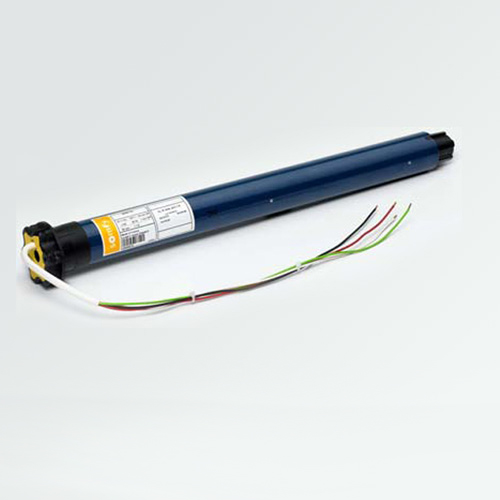

506 ILT Motor | |
Has 6' cord, no plug and data cable. This motor has built-in intelligence for operation. It has both a data cable and high voltage cable exiting the motor head. The data cable ties into control and the high voltage ties into power.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
| return to top | ||
 |

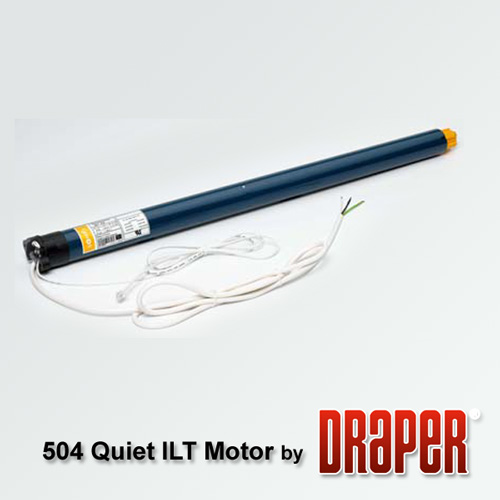

504 Quiet ILT Motor | |
Has 6' cord, no plug and data cable. Quiet motors operate at 44Db. Motor noise is reduced by 30%. This motor has built-in intelligence for operation. It has both a data cable and high voltage cable exiting the motor head. The data cable ties into control and the high voltage ties into power.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
| return to top | ||
 |

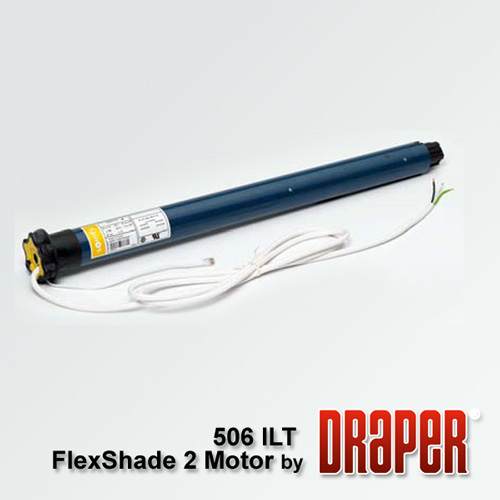

506 ILT FlexShade 2 Motor | |
This motor has built-in intelligence for operation. It has both a data cable and high voltage cable existing the motor head. The data cable ties into control and the high voltage ties into power. Not for all FlexShade 2 sizes.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
| return to top | ||
Battery and Low Voltage Motor Options
These motors act as upgrades for Clutch FlexShades only. These motors have built-in radio receiver and are compatible with Radio Motor Controls. Transformers are required if pricing low voltage motors. Only Manual FlexShades using 1-1/2" rollers can be used with these motors (maximum width approx. 90"). If you are unsure that your shades will work with these motors please contact Draper.
 |
LT30 Battery Motor | |
Includes 12V Dual Battery Wands. This motor requires a transformer.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
| return to top | ||
 |

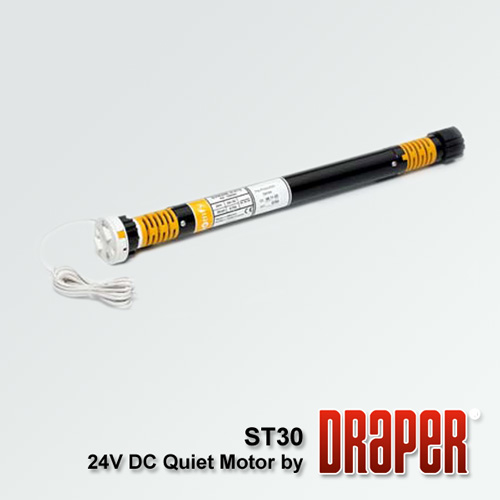

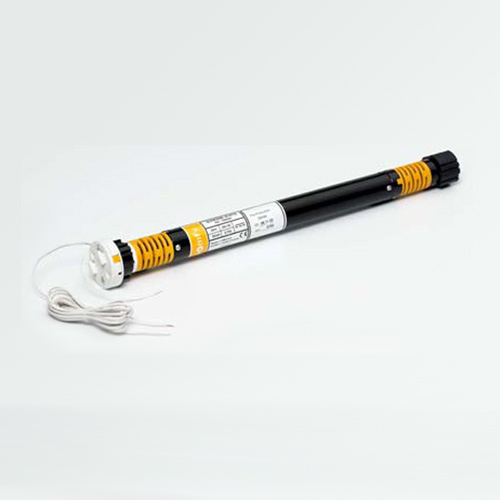

ST30 24V DC Quiet Motor | |
This motor can possibly tie into existing low voltage wiring. Transformer required to power shades.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
| return to top | ||
 |
ST30 24V Dry Contact Motor | |
The dry contact motor is able to receive contact closure from a single source for operation. One set of closures will run 1 motor only.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
| return to top | ||
|
|
ST30 24V ILT Motor | |
This low voltage motor has built-in intelligence. It has both a data and power wire.
FlexShade Limited Warranty |
Motorized Shades Handbook |
|
