Now Redesigned! Available March 2012 Aluminum FlexShade Pockets are for mounting motorized or manual FlexShades above the ceiling. Pockets are anchored through the top, and FlexShades are installed using standard ceiling brackets.

Pockets have a removeable continuous closure that drops into place without fasteners. 1-1/2" closure panel recommended for use with clutch-operated FlexShades. Larger closure panels will require field notching for bead chain clearance. Not suitable for all products/sizes.

• 12' length
• Cross-section meaures 5" x 5-3/8"
• Standard color: white
• Fixed lip along lower edge supports lay-in ceiling at bottom edge
• For use with clutch-operated or motorized FlexShade, and with FlexShade Coupling Assembly.

Pocket already exists? Specify FlexShade Wall Clip with closure. Wall Clip mounts to the wall and bottom closure panel drops neatly into place without fasteners, leaving a minimal slot through which shade descends. Closure sizes 1-1/2" or 3" or 5". Wall clip length 12'

Pocket already exists? Specify FlexShade Wall Clip with closure. Wall Clip mounts to the wall and bottom closure panel drops neatly into place without fasteners, leaving a minimal slot through which shade descends. Closure size 7/8". Extension is 12' long.

1-1/2", 3" or 5" closure. 1-1/2" recommended for use with clutch operated FlexShades. Larger closure panels will require field notching for chain clearance. 5" for use with wall clip only.

Shade fabric attached to channel with spline to create a free hanging fixed shade. Specify extrustion color.

Side "U" Channels, "H" Channels or "L" Angles prevent direct light gaps at sides of shade fabrics. Side Channels are 1" deep x 2-1/2" wide, and mount to the jamb or face of window opening. H Channels are 1" deep x 5" wide and are face mounted. "L" Angles measure 1" x 3/4" or 1" x 2-3/4" and mount inside the jamb.

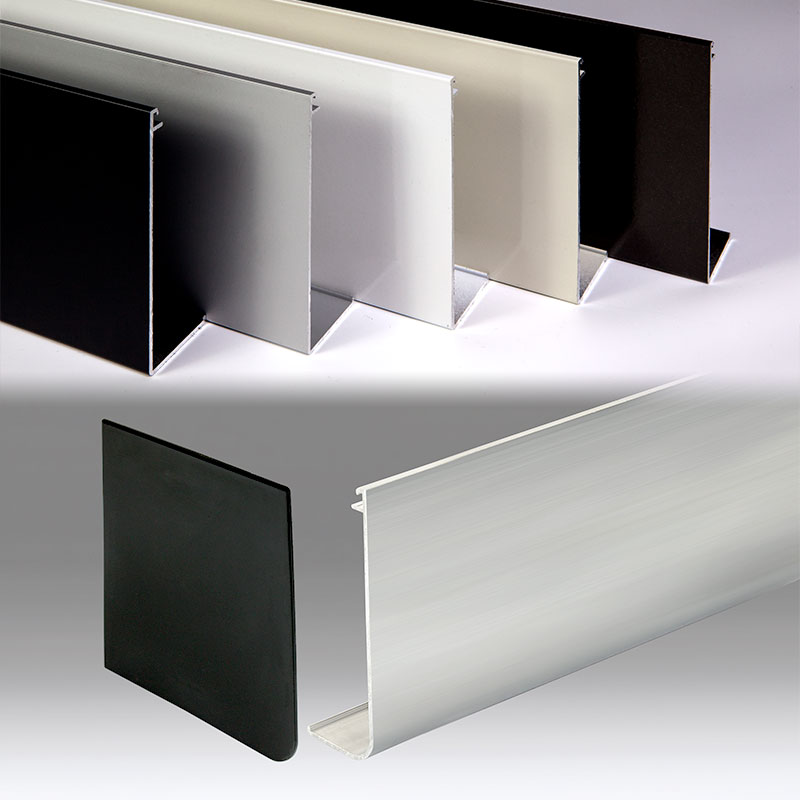

Optional extruded fascia in square or radius styles hides hardware and roller. Available in clear anodized (standard), black, white, ivory, or charcoal bronze. 3-7/8" or 4-5/8" high as required. Color samples are available.

Includes special hem bar with cable guides, wall or deck mount hardware, and 13' of steel cable. Cable cut to length in field.

May be mounted inside or outside with matching endcaps. Is a secure fit, notchless and has a small profile. Accommodates manual FlexShades, Motorized FlexShades, Battery operated FlexShades and 24V FlexShades. Five colors: black, white, ivory, bronze or clear anodized, plus custom powder coat is available.

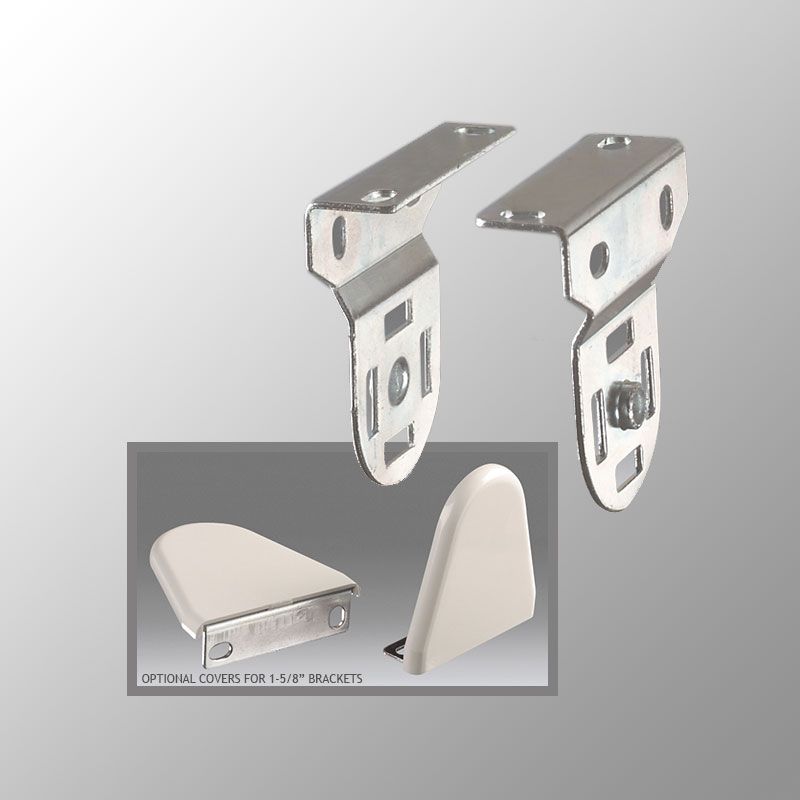

The standard mounting hardware supplied for wall, ceiling or jamb installation of Draper Motorized and Manual FlexShades. As an option for a pair of 1-5/8" brackets, white bracket covers are available. If optional fascia or headbox are specified, then endcaps (not brackets are supplied).

Complete extruded headbox is available to hide hardware and roller as an option for Motorized and Manual FlexShades. Two-piece assembly is suitable for surface mount to head, jamb or wall, in sizes 3-7/8" high or 4-5/8" high as required.

Complete extruded headbox with endcaps is available for ceiling recessed installation. In sizes 3-7/8" high or 4-5/8" high.
