Video Wall Framing Systems

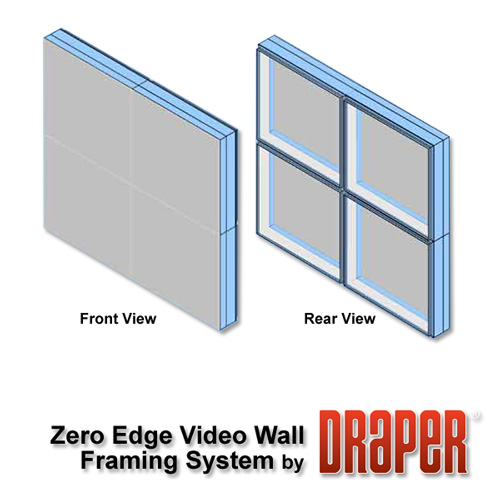

Zero Edge Video Wall Framing

Zero Edge Video Wall Framing
Zero Edge Video Wall Framing

Click an image to enlarge
in a separate window


Draper’s mullionless Zero Edge Framing System is the first and only optically seamless large screen videowall framing system. Incorporates a proprietary screen attachment system supported by extruded aluminum light baffles on all four sides. This mullionless design allows adjacent screens to come together with "zero" screen separation.


  • Our exclusive light baffle system creates a visually seamless appearance.
  • Actual screen separation is approximately 0.5 mm. There is no visible perimeter frame around individual screens.
  • Designed to install within an existing rough opening, can be used in conjunction with our Projector Support Structure, in our MultiScreen System.
  • Panoramic or tilted video walls are possible.
  • Individual modules are completely self-supporting, eliminating the possibility of screen warpage.
  • Can assemble video walls in any configuration.
  • Choice of four rigid rear screen types, with individual screen sizes ranging from 30" to 180" diagonally. IRUS, Cineplex®, High Contrast Black and DiamondScreen™ may be used.
  • Optional Mirror Manager
  • Warranted for one year against defects in materials and workmanship.

SUPPORTING DOCUMENTS



CAD (dwg)

CAD (pdf)

Catalog

Instructions

CSI 3-Part Specs
