Projector Support Structures

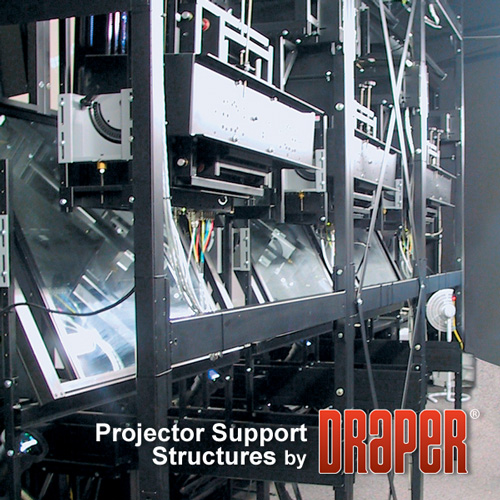

Projector Support Structures Projector Support Structures

Click an image to enlarge
in a separate window


Designed and built to your specific requirement. Projector Support Structures are built in any grid configuration. All are custom designed and manufactured to meet individual application. Straight shoot or mirrored design. Mirrors, when required, are 94% reflective first surface mirrors. They are structurally reinforced which greatly improves flatness and quality of the projected image, especially in larger sizes.


SUPPORTING DOCUMENTS



Heavy Duty Aligment Platform Instructions

Light Weight Alignment Platform Instructions

CSI 3-Part Specs

CAD (dwg)

CAD (pdf)

Catalog

Light Spectrum Chart for 1st Surface Mirrors
