Folding Screen Accessories

UFS Accessories
Cinefold Accessories

Dress Kits and Draperies
Pipe and Drape Runoffs

StageHand



Ultimate Folding Screen (UFS) Accessories



UFS Heavy Duty Legs

Heavy Duty Legs for UFS

Extra reinforcement against front-to-back movement. Strongly recommended for any screen over 7½' x 10', or for any screen used with a Dress Kit.
UFS Extra Heavy Duty Legs Extra Heavy Duty Legs for UFS
UFS Standard T Leg

Standard T-Legs for UFS



Constructed of sturdy 1" square hard-alloy structural aluminum tubing, clear etched and anodized for long life. Hinged inverted "T" shape, with rubber-tipped feet
UFS Standard Crank

Standard Crank (used for all UFS Screens except as noted below)



Cranks are 5/ 16" diameter crankbolts, for quick assembly without tools.
UFS Long Crank Long Crank (used for UFS in sizes 7'6" x 10', 9' x 12', 10'6" x 14', 10' x 10', 12' x 12', and 96" x 144")
UFS Crank with Washer Crank with large washer, for use only with UFS
Folding Screen Case

Ultimate Folding Screen Case for UFS



Designed for service and dependability. Each case has two wheels. Handles are molded into each end of case. Lid handle is steel with rubber grip. Lid is secured with two adjustable straps. Stacks with lids on or nests compactly with lids off. Case for use with Ultimate Folding Screens, Ultimate Folding Dress Kits , Cinefold Screens and Cinefold Dress Kits.
Stagehand

Stagehand for UFS



This handy tool helps you save a lot of time and money by allowing one person to set up most folding screens. The StageHand is a simple device consisting of two “hooks” mounted on the end of a telescoping pole. The pole has a non-skid rubber tip. The hooks firmly hold and lift the top of a folding screen frame. Extend the pole to support the screen as a “third leg”. This frees the tech unfolding and lock the screen's legs. Then just lift the screen fully onto its feet and remove the hook. Draper’s StageHand comes in two sizes, to fit either 1" folding screen frames (like Draper's Cinefold) or 1 1/2" frames (like Draper's Ultimate Folding Screen). It telescopes from 65" to 120" in length, and is suitable for use with screens in sizes through 7'6" x 10'. MORE

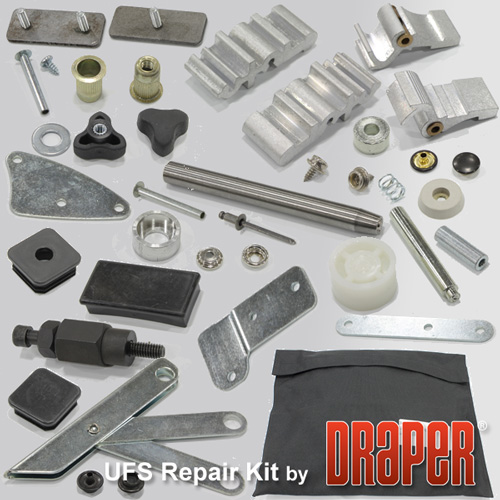

UFS Repair Kit

Repair Kit for UFS with or without tools



All the tools and small parts required to maintain a rental inventory of UFS screens.



Parts List (pdf)
Masking Strips

Screen Format Masking Strips for UFS

Quickly and easily convert your HDTV folding screen to NTSC format with these black masking strips. Available in black velour.

Cinefold Accessories
Cinefold Heavy Duty Legs

Heavy-Duty Legs for Cinefold instead of T-Legs (pr.)



Extra reinforcement against front-to-back movement. Strongly recommended for any screen over 7½' x 10', or for any screen used with a Dress Kit.

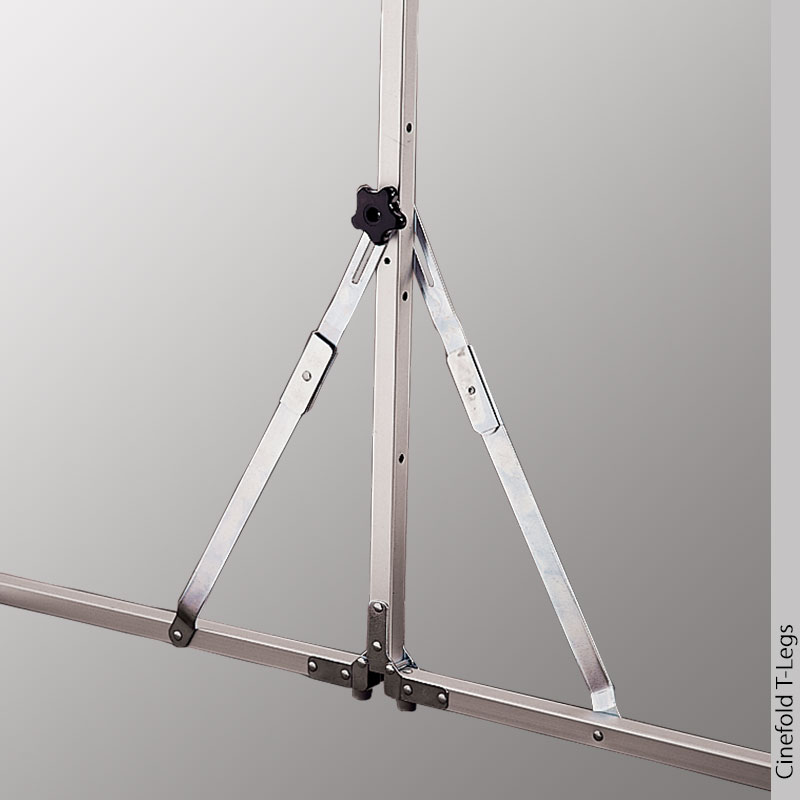

Cinefold T-Legs

Standard T-Legs for Cinefold (pr.)



Constructed of sturdy 1" square hard-alloy structural aluminum tubing, clear etched and anodized for long life. Hinged inverted "T" shape, with rubber-tipped feet.

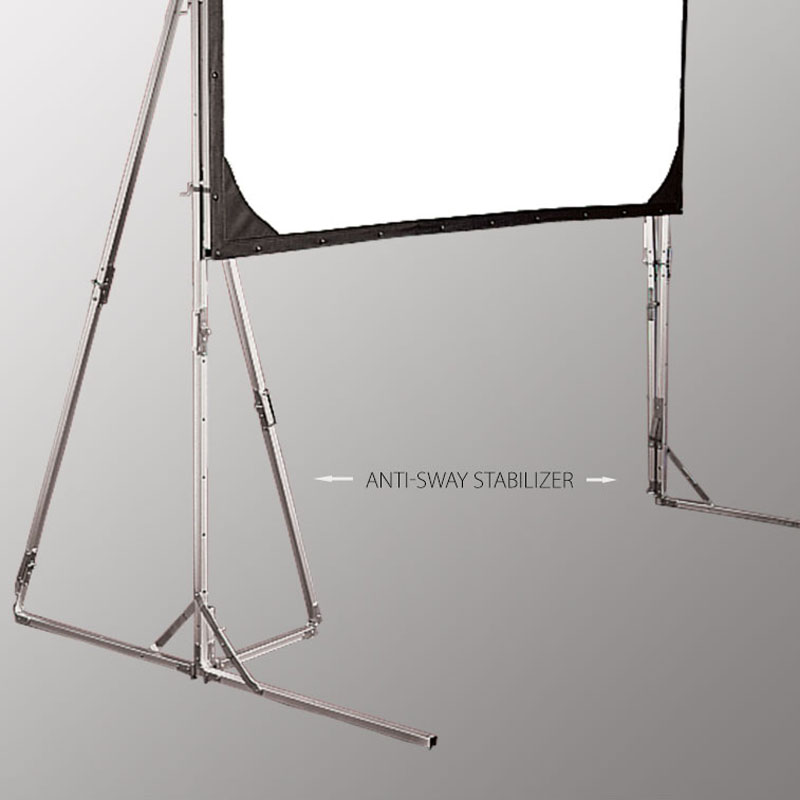

Anti Sway Stabilizer

Anti-Sway Stabilizers for Cinefold (pr.) Heavy duty legs required.



Reinforce against side-to-side movement. May be mounted either inside or outside Cinefold leg. Recommended for screens over 10½' x 14' and for use with Dress Kits.
Connection Clamp

Screen Connection Clamps for Cinefold (pr.)



Join two or more screens for a really wide presentation. Clamps join screen frames from back, then Lshaped section wraps to front and accepts snaps on masking strips.

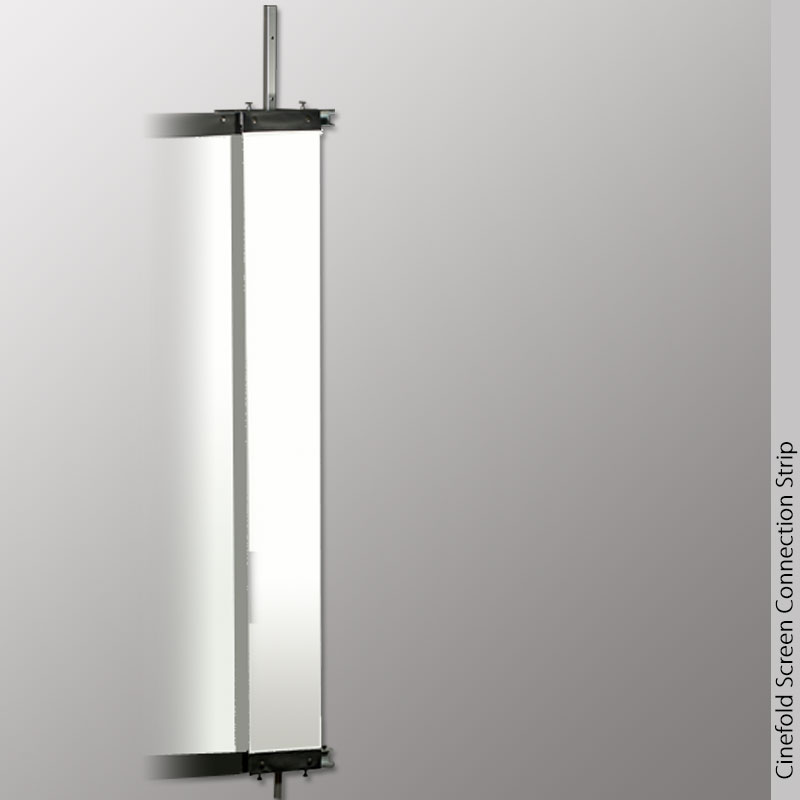

Cinefold Screen Connection Strip

Screen Connection Strip for Cinefold(white or black)



Connection strips conceal hardware and provide image continuity. White masking for use with matt white; black for Cineflex. Works with screen connection clamps or hinge clamps. Specify height of screen.

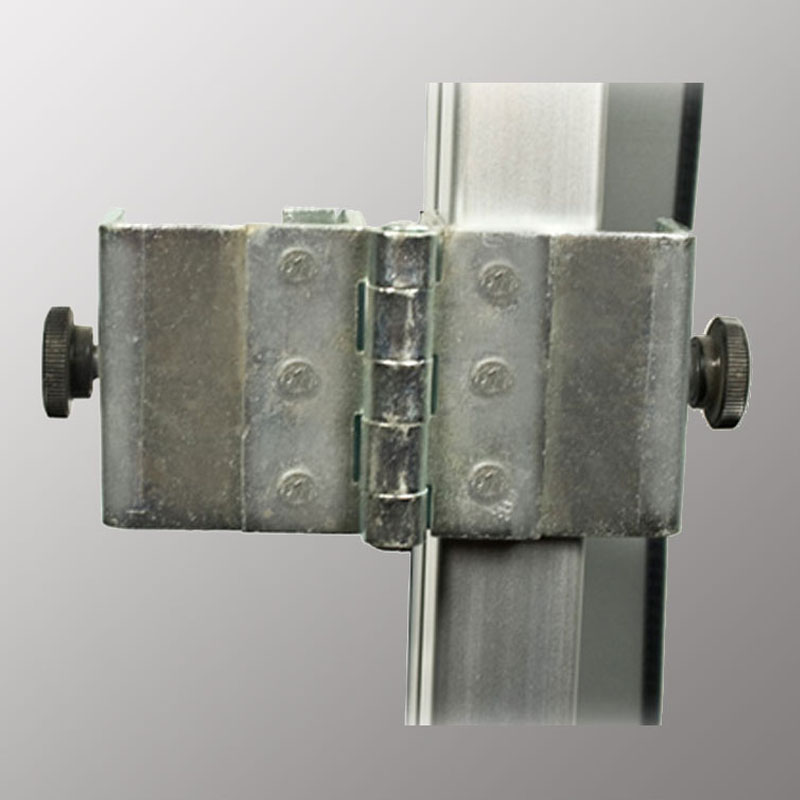

Cinefold Hinge Clamp

Hinge Clamps for Cinefold (pr.)



This screen connection clamp includes a hinge so the two screens can be set at an angle.
Cinefold Crank Standard Crank for Cinefold Used for all Cinefold and Truss Cinefold screens except as noted below

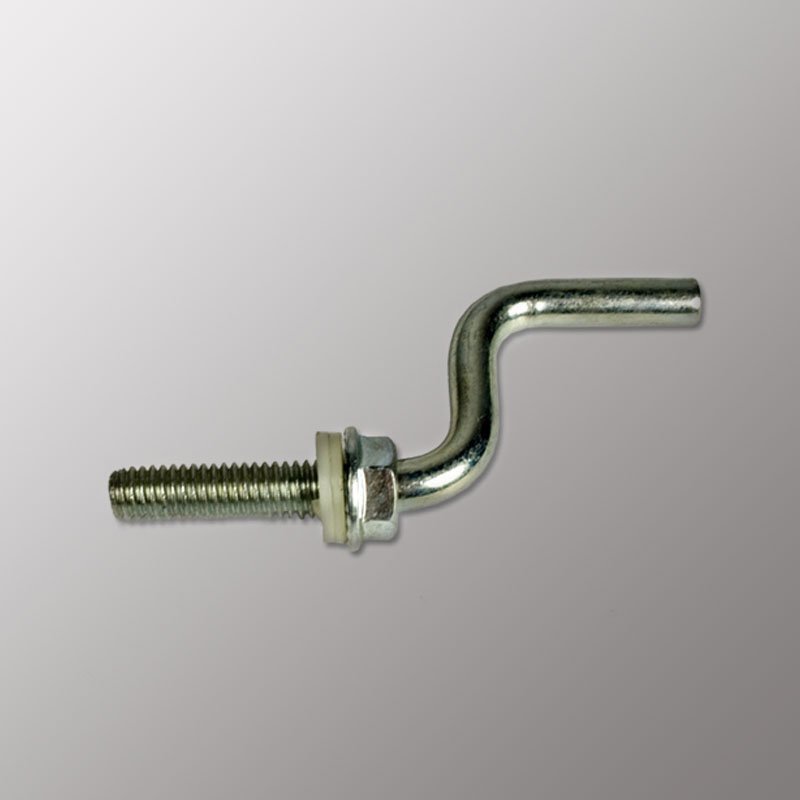

Cinefold Short Crank Short Crank for Cinefold For use only with L-Section at top of Truss Cinefold
Cinefold Repair Kit

Repair Kit for Cinefold with or without tools



All the tools and small parts you need to maintain a rental inventory of Cinefold screens.



Parts List (pdf)
Folding Screen Case

Cinefold Case



Designed for service and dependability. Each case has two wheels. Handles are molded into each end of case. Lid handle is steel with rubber grip. Lid is secured with two adjustable straps. Stacks with lids on or nests compactly with lids off. Case for use with Ultimate Folding Screens, Ultimate Folding Dress Kits , Cinefold Screens and Cinefold Dress Kits.
Stagehand

StageHand for Cinefold



This handy little tool helps you save a lot of time and money by allowing one person to set up most folding screens. The StageHand is a simple device consisting of two “hooks” mounted on the end of a telescoping pole. The pole has a non-skid rubber tip. The hooks firmly hold and lift the top of a folding screen frame. Extend the pole to support the screen as a “third leg”. This frees the tech unfolding and lock the screen's legs. Then just lift the screen fully onto its feet and remove the hook. Draper’s StageHand comes in two sizes, to fit either 1" folding screen frames (like Draper's Cinefold) or 1 1/2" frames (like Draper's Ultimate Folding Screen). It telescopes from 65" to 120" in length, and is suitable for use with screens in sizes through 7'6" x 10'. MORE
