Viewing Surface Information

OptiView Family
OptiView surfaces are self-supporting and do not require tensioning to lay flat. These front projection surfaces are generally installed on operable roller screens with a dowel. Most surfaces in this group have a tearproof fiberglass base textile. OptiView surfaces are extremely sturdy and suitable for use in a variety of settings.
Matt White XT1000E
The standard to which all other screen surfaces are compared. Preferred viewing surface in educational and commercial markets. A matt white surface diffuses projected light in all directions, so the image can be seen from any angle. Offers accurate color rendition, and superior clarity due to its smooth, non-embossed surface. Requires adequate provision for the control of ambient light in the audience area. Unity gain with a panoramic 180° cone. This surface is GREENGUARD Children and SchoolsSM certified.
Matt White XT1000E Viewing Surface
Available Products
Surface characteristics and reflective performance
Maximum Height Without Seams:120"
Weight (g/sm): 515
Weight (oz/yd2): 15.19
Thickness (mm): 0.38
Cleaning: Mild soap and water
Flame Retardant: NFPA-701
Composition: Fiberglass base laminated with PVC. Composition may differ slightly for some screen sizes/models.
Gain On Axis/0° Gain: 1
Half Gain Angle: Material does not reach half gain.

[Click image to enlarge]

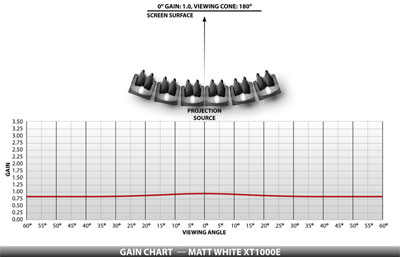

Matt White XT1000E Gain Chart

White Paper: Screen Surface Performance in Ambient Light

Surface Performance in Ambient LightScreen Surface Performance in Ambient Light (pdf)

Viewing Surface Names

Each surface has a name that includes the characteristics it has. The following shows an example with definitions and examples of each area listed below.

Viewing Surface Key

X: Extra-wide. Half gain is greater than 60°

M: Moderate. Half gain is 30-60°

C: Controlled. Half gain is less than 30°

T: Typical. Surfaces with "typical" contrast are white in color and are generally recommended for use where ambient light is controlled.

H: High. Surfaces with "high" contrast usually have a grey surface or substrate. Their black retention is enhanced and they perform well under reasonable levels of ambient light.

S: Superior. This designation is reserved for surfaces with remarkable contrast and resistance to ambient light. Our "superior" surfaces will meet or exceed the contrast offered by any competitive viewing surface.

The numeric portion of the name is its typical peak gain x 1000. Gain levels of surfaces cover the full range from 0.6 to 3.2, and minor variations may occur between the samples. Lower gain surfaces offer excellent uniformity across wide viewing cones, for excellent edge blending and consistent reproduction with short throw projectors. Higher gain surfaces offer a more brilliant display in a variety of settings.

* Gain is a measure of reflected or transmitted brightness as compared to a block of magnesium carbonate, which serves as the industry's standard for gain of 1.0. A more familiar "real-world" comparison is with a matt white projection screen. Most matt white screens have a fairly uniform light distribution pattern with gain of approximately 1.0. Screens that appear brighter on axis are concentrating reflected light in a narrower area: the gain may be 2.5 on axis but 0.5 at 60° to the side.

Some viewing surface codes include an E or V suffix after the gain number.

E: Indicates a self-supporting viewing surface that is part of the OptiView family and/or suitable for Draper Series E non-tensioned screen models.

V: Indicates the surface is part of our OptiFlex family of tensioned surfaces and/or suitable for Draper Series V tensioned screen models.
