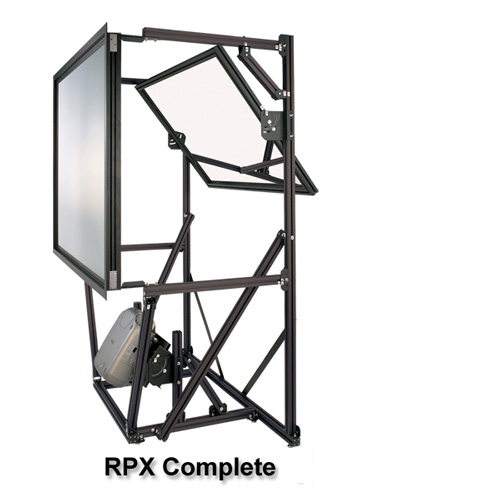

The advantages of a RPX/Complete are staggering:

• RPX/Complete has all the features of a RPX.
• Choice of an IRUS, Vortex, Cinescreen®, High Contrast Black, or DiamondScreen™ in a System 400 frame attached to the RPX/Complete for a perfectly aligned system.
• Screen sizes through 6' high x 8' wide.
• Framed screen “floats” in your wall opening. The wall does not bear the weight of the screen, so no finishing or reinforcement of the opening is required.
• Since the wall’s expansion and contraction properties do not put pressure on the rear screen, the result is a consistently flatter screen.
• Each element in the system is locked into its proper relationship, square with the others: screen-to-projector platform; projector platform-to-mirror; mirror-to-screen.
• Save installation time. Assemble the system, adjust the leveling feet on the base of the RPX and the entire system is level.
• Since the screen is automatically square with the mirror, installation of projector and alignment of image is made easier.
• Draper’s 6-Axis Adjustable Platform is standard. The platform allows all movement to be modified for best image alignment. The projector light path can be adjusted in all 6 axes for a perfect picture every time.

Standard on all RPX Units (except RPXlite):
• Consists of a custom designed reinforced projector cradle, reinforced first surface glass mirror, and a unitized framework of blue extruded aluminum to position the projector and mirror in precisely the right relationship to each other and to the screen.
• It is built specifically for your unique requirement.
• You provide us with the make and model of projector, desired screen size, and a few simple room dimensions. Our designers evaluate the optics and determine the proper light geometry. The RPX is preset for a perfect fit.
• Supporting frame is constructed of unitized framework of blue extruded aluminum with a 2" square cross section, fabricated from 6061-T6 alloy.
• It is sized to fit perfectly in your projection room, based upon dimensions you furnish.
• Sled Base features heavy-duty leveling feet and predrilled anchor points: when the system is correctly set, it may be permanently fastened in place.
• Mirror height, projector height, mirror angle and projector position (front to back) are all adjustable.
• The projector cradle is customized for your projector, and allows for both tilt-axis adjustment and micro-fine height adjustment, without tools, to position the image on rear screen.
• The cradle holds a six axis adjustment sled allowing movement to be for best image alignment.
• The projector light path can be adjusted in all 6 axes for a perfect picture every time.
• Cradle pivot plate is predrilled for the proper angle of installation, and calibrated in degrees for quick, precise adjustments if required.
• Mirror plate features shoulder bolts to simplify installation and slots for height adjustment.
• Has 94% reflective first surface mirrors.
• Ships complete with all required fasteners and hand tools
• Warranted for one year against defects in materials and workmanship.
