Single
Station Control—Standard
with all Draper video projector lifts, except Scissor Lift, Phantom and Orbiter. One 3-position
rocker switch: 115V for LCD Lift, AeroLift 25, 50, 150
and Micro Projector Lift, one 3-position
12V toggle switch for Scissor Lift
Switch operation is maintained contact. Complete with stainless
steel cover plate. UL
listed.
KS1 Technical Data Sheet |
|
|
|
 |
|
Low Voltage Switch
3-button
switches are labeled "up", "down" and "stop".
No preset sequence—push any button for desired function.

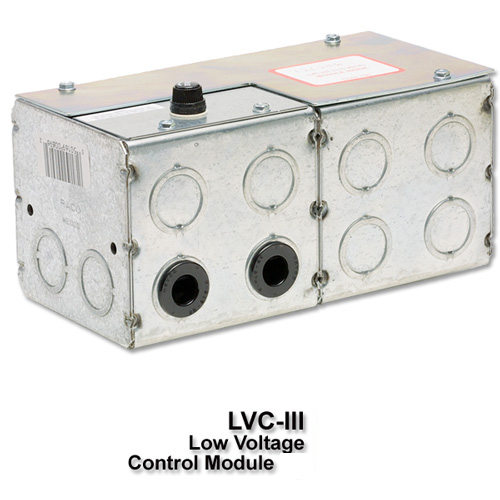

Switch must be used with Low
Voltage Control Unit. Neutral decorator face plates for
flush wall mounting. Optional for all Draper motorized screens. Technical
Data Sheet for LVCIII Technical
Data Sheet for switch |
|
 |
|
Key Operated Power Supply
Switch—Useful with
any control system for a Draper projector lift—low
voltage or 115V. Switch mounts next to operating switch
and controls power to it. Technical
Data Sheet |
|
 |
|
Video Interface Control/Ceiling-Recessed Video System—Operate a Draper LCD or Revelation video projector lift in tandem with a Draper motorized projection screen using the Video Interface Control. The VIC replaces the screen’s switch; for the projector lift, use the standard switch or any control described above. Touch the switch—or wireless remote control—and the video projector lift and projection screen descend. At the end of the presentation, flip the switch and the lift and screen will rise automatically. Not available for MPL and AeroLift 25. Model VIC115 integrates screen operation with equipment using a 115V switched outlet. Models VIC12 & VIC6 interface screen operation with equipment featuring a 12V/6V output. The VIC115, VIC12 & VIC6 may be purchased with an over-ride switch , permitting independent operation. A VIC is not compatible with an LVC-III, built-in or otherwise.
Technical Data Sheet VIC6, Technical Data Sheet VIC12, Technical Data Sheet VIC115
|
 |
|
|
 |
|
MC1
Motor Control Board
Provides multiple
options for screen, lift or shade motors. This simply designed
but powerful control board accepts 2-way serial communication,
infrared commands via IR receiver, and relay closures found
in home integration systems. Radio frequency is also available.
Available as an external option for all motorized screens, AeroLifts,
Micro Projector Lift and LCD Lift. Can also be factory installed
in some screens. |
|
| Wireless
Remote Controls
Enables you to operate a Draper video
projector lift, and electric screen if you wish, from anywhere
in the room. For use only with Draper low-voltage control
unit, which can be furnished either with or without wall switches.
Infrared and radio frequency controls available.
|
 |
|
Radio Frequency Remote
Control, WRT/R
Hand-held
transmitter. 3-button control. Receiver plugs into the
Draper low-voltage control unit, and must be ordered with it.
Technical Data Sheet |
|
 |
|
Infrared
Remote Control, IRT/R
Infrared transmitter and receiver.
3-button operation for instant access to "up", "down",
and "stop" functions. Fully compatible with
"learnable" IR master control systems. Receiver
plugs into the Draper low-voltage control unit, and must be
ordered with it.
Technical Data Sheet |
|
|
 |
|
|
|
|
|
|
|
